OW_NAMESPACE::Socket Class Reference

#include <OW_Socket.hpp>

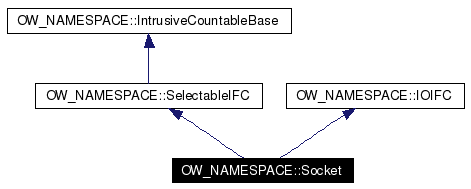

Inheritance diagram for OW_NAMESPACE::Socket:

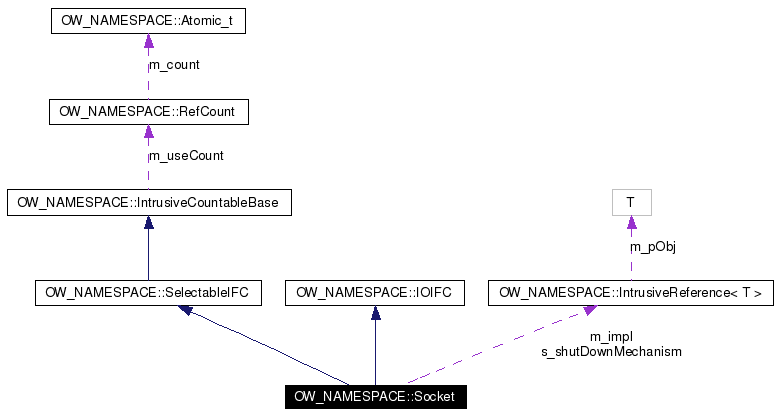

[legend]Collaboration diagram for OW_NAMESPACE::Socket:


Public Types
typedef UnnamedPipeRef	ShutDownMechanism_t
Public Member Functions
	Socket ()
	Construct a non-SSL Socket.
	Socket (const SSLClientCtxRef &sslCtx)
	Construct a Socket.
	Socket (SocketFlags::ESSLFlag isSSL) OW_DEPRECATED
	Allocate a new Socket.
	Socket (SocketHandle_t fd, SocketAddress::AddressType addrType, SocketFlags::ESSLFlag isSSL=SocketFlags::E_NOT_SSL)
	TODO: Make a replacement for this function so it can be deprecated.
	Socket (const SocketAddress &addr, SocketFlags::ESSLFlag isSSL=SocketFlags::E_NOT_SSL)
	TODO: Make a replacement for this function so it can be deprecated.
void	connect (const SocketAddress &addr)
	Connect to a peer node.
void	disconnect ()
	Disconnect the (presumably) open connection.
void	setReceiveTimeout (int seconds)
	Set the receive timeout on the socket.
int	getReceiveTimeout () const
	Get the receive timeout.
void	setSendTimeout (int seconds)
	Set the send timeout on the socket.
int	getSendTimeout () const
	Get the send timeout.
void	setConnectTimeout (int seconds)
	Set the connect timeout on the socket.
int	getConnectTimeout () const
	Get the connect timeout.
void	setTimeouts (int seconds)
	Set all timeouts (send, receive, connect).
bool	receiveTimeOutExpired () const
	Has the receive timeout expired?
int	write (const void *dataOut, int dataOutLen, bool errorAsException=false)
	Write some data to the socket.
int	read (void *dataIn, int dataInLen, bool errorAsException=false)
	Read from the socket.
bool	waitForInput (int timeOutSecs=INFINITE_TIMEOUT)
	Wait for input on the socket for a specified length of time.
bool	waitForOutput (int timeOutSecs=INFINITE_TIMEOUT)
	Wait for output on the socket for a specified length of time.
SocketAddress	getLocalAddress () const
	Get the local address associated with the socket connection.
SocketAddress	getPeerAddress () const
	Get the peer address associated with the socket connection.
std::istream &	getInputStream ()
	Get an istream to read from the socket.
std::ostream &	getOutputStream ()
	Get an ostream to write to the socket.
OW_DEPRECATED std::iostream &	getIOStream ()
	Get an iostream to read/write from/to the socket.
Select_t	getSelectObj () const
SocketHandle_t	getfd ()
	Get the socket handle for the socket.
bool	isConnected () const
	Get connected state.
SSL *	getSSL () const
	get the SSL structure associated with the socket (if it is an SSL socket)
bool	peerCertVerified () const
	did the peer certificate pass verification?
Static Public Member Functions
static void	createShutDownMechanism ()
static void	shutdownAllSockets ()
	Call this to shutdown all sockets.
static bool	gotShutDown () OW_DEPRECATED
	Have the sockets been shutdown?
static void	deleteShutDownMechanism ()
static ShutDownMechanism_t	getShutDownMechanism ()
Static Public Attributes
static const int	INFINITE_TIMEOUT = -1
Private Member Functions
	Socket (SocketHandle_t fd, SocketAddress::AddressType addrType, const SSLServerCtxRef &sslCtx)
	Allocate a new Socket based on an existing handle.
Private Attributes
SocketBaseImplRef	m_impl
Static Private Attributes
static ShutDownMechanism_t	s_shutDownMechanism = 0
Friends
class	ServerSocketImpl

Detailed Description

Definition at line 64 of file OW_Socket.hpp.

Member Typedef Documentation

typedef UnnamedPipeRef OW_NAMESPACE::Socket::ShutDownMechanism_t

Definition at line 251 of file OW_Socket.hpp.

Constructor & Destructor Documentation

OW_NAMESPACE::Socket::Socket ( )

Construct a non-SSL Socket.

Definition at line 58 of file OW_Socket.cpp.

OW_NAMESPACE::Socket::Socket ( const SSLClientCtxRef & sslCtx )

Construct a Socket.

Parameters:

sslCtx The SSL client context. If null, the socket will not use SSL.

Definition at line 63 of file OW_Socket.cpp.
References m_impl, and OW_THROW.

OW_NAMESPACE::Socket::Socket ( SocketFlags::ESSLFlag isSSL )

Allocate a new Socket.

Parameters:

isSSL is it an ssl socket?

Definition at line 80 of file OW_Socket.cpp.
References OW_NAMESPACE::SocketFlags::E_SSL, m_impl, and OW_THROW.

OW_NAMESPACE::Socket::Socket ( SocketHandle_t fd,

SocketAddress::AddressType addrType,

SocketFlags::ESSLFlag isSSL = SocketFlags::E_NOT_SSL

)

TODO: Make a replacement for this function so it can be deprecated.
Allocate a new Socket based on an existing handle. This is used by ServerSocket::accept()
Parameters:

fd a handle to the existing socket

isSSL is it an SSL socket?

Definition at line 96 of file OW_Socket.cpp.
References OW_NAMESPACE::SocketFlags::E_SSL, m_impl, and OW_THROW.

OW_NAMESPACE::Socket::Socket ( const SocketAddress & addr,

SocketFlags::ESSLFlag isSSL = SocketFlags::E_NOT_SSL

)

TODO: Make a replacement for this function so it can be deprecated.
Allocate a new Socket and connect it to a peer machine
Parameters:

addr the address of the peer machine is it an SSL socket?

Exceptions:

SocketException

Definition at line 131 of file OW_Socket.cpp.
References OW_NAMESPACE::SocketFlags::E_SSL, m_impl, and OW_THROW.

OW_NAMESPACE::Socket::Socket ( SocketHandle_t fd,

SocketAddress::AddressType addrType,

const SSLServerCtxRef & sslCtx

) [private]

Allocate a new Socket based on an existing handle.
This is used by ServerSocket::accept()
Parameters:

fd a handle to the existing socket

isSSL is it an SSL socket?

Definition at line 114 of file OW_Socket.cpp.
References m_impl, and OW_THROW.

Member Function Documentation

void OW_NAMESPACE::Socket::connect ( const SocketAddress & addr ) [inline]

Connect to a peer node.

Parameters:

addr The address of the machine to connect to.

Exceptions:

SocketException

Definition at line 103 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::checkConnection(), OW_NAMESPACE::HTTPClient::getLocalAddress(), and OW_NAMESPACE::HTTPClient::getPeerAddress().

void OW_NAMESPACE::Socket::createShutDownMechanism ( ) [static]

Definition at line 174 of file OW_Socket.cpp.
References OW_NAMESPACE::b_gotShutDown, OW_NAMESPACE::UnnamedPipe::createUnnamedPipe(), OW_NAMESPACE::UnnamedPipe::E_NONBLOCKING, OW_ASSERT, s_shutDownMechanism, and OW_NAMESPACE::shutdownMutex.
Referenced by OW_NAMESPACE::CIMOMEnvironment::startServices().

void OW_NAMESPACE::Socket::deleteShutDownMechanism ( ) [static]

Definition at line 192 of file OW_Socket.cpp.
References s_shutDownMechanism, and OW_NAMESPACE::shutdownMutex.

void OW_NAMESPACE::Socket::disconnect ( ) [inline]

Disconnect the (presumably) open connection.

Definition at line 108 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::checkConnection(), OW_NAMESPACE::HTTPClient::close(), OW_NAMESPACE::HTTPSvrConnection::doCooperativeCancel(), and OW_NAMESPACE::HTTPSvrConnection::~HTTPSvrConnection().

int OW_NAMESPACE::Socket::getConnectTimeout ( ) const [inline]

Get the connect timeout.

Returns:
The number of seconds of the connect timeout

Definition at line 140 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::getConnectTimeout().

SocketHandle_t OW_NAMESPACE::Socket::getfd ( ) [inline]

Get the socket handle for the socket.

Returns:
the socket handle

Definition at line 227 of file OW_Socket.hpp.

std::istream& OW_NAMESPACE::Socket::getInputStream ( ) [inline]

Get an istream to read from the socket.

Returns:
a istream& which can be used for socket input

Exceptions:

SocketException

Definition at line 203 of file OW_Socket.hpp.

OW_DEPRECATED std::iostream& OW_NAMESPACE::Socket::getIOStream ( ) [inline]

Get an iostream to read/write from/to the socket.

Returns:
an iostream& which can be used for socket input and output.

Exceptions:

SocketException

Definition at line 217 of file OW_Socket.hpp.

SocketAddress OW_NAMESPACE::Socket::getLocalAddress ( ) const [inline]

Get the local address associated with the socket connection.

Returns:
an SocketAddress representing the local machine

Definition at line 192 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPServerSelectableCallback::doSelected().

std::ostream& OW_NAMESPACE::Socket::getOutputStream ( ) [inline]

Get an ostream to write to the socket.

Returns:
an ostream& which can be used for socket output

Exceptions:

SocketException

Definition at line 210 of file OW_Socket.hpp.

SocketAddress OW_NAMESPACE::Socket::getPeerAddress ( ) const [inline]

Get the peer address associated with the socket connection.

Returns:
an SocketAddress representing the peer machine

Definition at line 197 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPServerSelectableCallback::doSelected(), and OW_NAMESPACE::HTTPSvrConnection::run().

int OW_NAMESPACE::Socket::getReceiveTimeout ( ) const [inline]

Get the receive timeout.

Returns:
The number of seconds of the receive timeout

Definition at line 120 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::checkResponse(), and OW_NAMESPACE::HTTPClient::getReceiveTimeout().

Select_t OW_NAMESPACE::Socket::getSelectObj ( ) const [inline, virtual]

Returns:
The Select_t associated with this sockect.

Implements OW_NAMESPACE::SelectableIFC.
Definition at line 222 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPSvrConnection::run().

int OW_NAMESPACE::Socket::getSendTimeout ( ) const [inline]

Get the send timeout.

Returns:
The number of seconds of the send timeout

Definition at line 130 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::getSendTimeout().

static ShutDownMechanism_t OW_NAMESPACE::Socket::getShutDownMechanism ( ) [inline, static]

Definition at line 254 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::SocketUtils::waitForIO().

SSL * OW_NAMESPACE::Socket::getSSL ( ) const

get the SSL structure associated with the socket (if it is an SSL socket)

Returns:
a pointer to the SSL structure

Definition at line 213 of file OW_Socket.cpp.
References OW_NAMESPACE::IntrusiveReference< T >::cast_to(), and m_impl.

bool OW_NAMESPACE::Socket::gotShutDown ( ) [static]

Have the sockets been shutdown?

Returns:
true if the sockets have been shutdown

Definition at line 206 of file OW_Socket.cpp.
References OW_NAMESPACE::b_gotShutDown, and OW_NAMESPACE::shutdownMutex.

bool OW_NAMESPACE::Socket::isConnected ( ) const [inline]

Get connected state.

Definition at line 232 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::checkAndExamineStatusLine(), OW_NAMESPACE::HTTPClient::checkConnection(), OW_NAMESPACE::HTTPClient::getLocalAddress(), and OW_NAMESPACE::HTTPClient::getPeerAddress().

bool OW_NAMESPACE::Socket::peerCertVerified ( ) const

did the peer certificate pass verification?

Returns:
true if peer cert verified.

Definition at line 225 of file OW_Socket.cpp.
References OW_NAMESPACE::IntrusiveReference< T >::cast_to(), and m_impl.

int OW_NAMESPACE::Socket::read ( void * dataIn,

int dataInLen,

bool errorAsException = false

) [inline, virtual]

Read from the socket.

Parameters:

dataIn a pointer to a buffer where data should be copied to

dataInLen the number of bytes to read.

errorAsException true if errors should throw exceptions.

Returns:
the number of bytes read.

Exceptions:

SocketException

Implements OW_NAMESPACE::IOIFC.
Definition at line 169 of file OW_Socket.hpp.

bool OW_NAMESPACE::Socket::receiveTimeOutExpired ( ) const [inline]

Has the receive timeout expired?

Returns:
true if the receive timeout has expired.

Definition at line 150 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::checkResponse(), and OW_NAMESPACE::HTTPSvrConnection::sendError().

void OW_NAMESPACE::Socket::setConnectTimeout ( int seconds ) [inline]

Set the connect timeout on the socket.

Parameters:

seconds the number of seconds for the connect timeout

Definition at line 135 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::setConnectTimeout().

void OW_NAMESPACE::Socket::setReceiveTimeout ( int seconds ) [inline]

Set the receive timeout on the socket.

Parameters:

seconds the number of seconds for the receive timeout

Definition at line 115 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::setReceiveTimeout().

void OW_NAMESPACE::Socket::setSendTimeout ( int seconds ) [inline]

Set the send timeout on the socket.

Parameters:

seconds the number of seconds for the send timeout

Definition at line 125 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::setSendTimeout().

void OW_NAMESPACE::Socket::setTimeouts ( int seconds ) [inline]

Set all timeouts (send, receive, connect).

Parameters:

seconds the number of seconds for the timeouts

Definition at line 145 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::setTimeouts().

void OW_NAMESPACE::Socket::shutdownAllSockets ( ) [static]

Call this to shutdown all sockets.
This is usefull when the CIMOM is shutting down. We want any outstanding connections to close immediately.
Definition at line 151 of file OW_Socket.cpp.
References OW_NAMESPACE::b_gotShutDown, OW_ASSERT, OW_THROW_ERRNO_MSG, s_shutDownMechanism, and OW_NAMESPACE::shutdownMutex.

bool OW_NAMESPACE::Socket::waitForInput ( int timeOutSecs = INFINITE_TIMEOUT ) [inline]

Wait for input on the socket for a specified length of time.

Parameters:

timeOutSecs the number of seconds to wait.

Returns:
true if the timeout expired

Exceptions:

SocketException

Definition at line 177 of file OW_Socket.hpp.
Referenced by OW_NAMESPACE::HTTPClient::checkAndExamineStatusLine().

bool OW_NAMESPACE::Socket::waitForOutput ( int timeOutSecs = INFINITE_TIMEOUT ) [inline]

Wait for output on the socket for a specified length of time.

Parameters:

timeOutSecs the number of seconds to wait.

Returns:
true if the timeout expired

Exceptions:

SocketException

Definition at line 185 of file OW_Socket.hpp.

int OW_NAMESPACE::Socket::write ( const void * dataOut,

int dataOutLen,

bool errorAsException = false

) [inline, virtual]

Write some data to the socket.

Parameters:

dataOut a pointer to the memory to be written to the socket.

dataOutLen the length of the data to be written

errorAsException true if errors should throw exceptions.

Returns:
the number of bytes written.

Exceptions:

SocketException

Implements OW_NAMESPACE::IOIFC.
Definition at line 159 of file OW_Socket.hpp.

Friends And Related Function Documentation

friend class ServerSocketImpl [friend]

Definition at line 297 of file OW_Socket.hpp.

Member Data Documentation

const int OW_NAMESPACE::Socket::INFINITE_TIMEOUT = -1 [static]

Definition at line 110 of file OW_Socket.hpp.

SocketBaseImplRef OW_NAMESPACE::Socket::m_impl [private]

Definition at line 289 of file OW_Socket.hpp.
Referenced by getSSL(), peerCertVerified(), and Socket().

Socket::ShutDownMechanism_t OW_NAMESPACE::Socket::s_shutDownMechanism = 0 [static, private]

Definition at line 295 of file OW_Socket.hpp.
Referenced by createShutDownMechanism(), deleteShutDownMechanism(), and shutdownAllSockets().

The documentation for this class was generated from the following files:

Generated on Thu Feb 9 09:14:54 2006 for openwbem by

1.4.6

OW_NAMESPACE::Socket Class Reference

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes
