OWBI1::CIMProperty Class Reference

The CIMProperty class encapsulates all data and functionality petinent to a CIM property found in a CIM class or a CIM Instance. More...

#include <OWBI1_CIMProperty.hpp>

Inheritance diagram for OWBI1::CIMProperty:

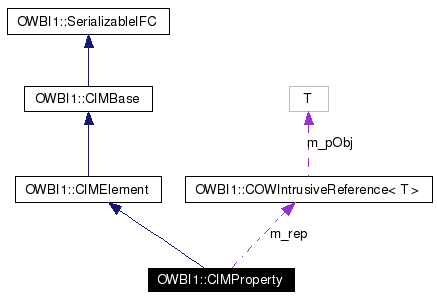

[legend]Collaboration diagram for OWBI1::CIMProperty:

[legend]List of all members.

Public Types
typedef detail::CIMPropertyRepRef CIMProperty::*	safe_bool
Public Member Functions
	CIMProperty ()
	Create a new CIMProperty object.
	CIMProperty (CIMNULL_t)
	Create a NULL CIMProperty object.
	CIMProperty (const CIMName &name)
	Create an CIMProperty object with a given name.
	CIMProperty (const char *name)
	Create an CIMProperty object with a given name.
	CIMProperty (const CIMName &name, const CIMValue &value)
	Create an CIMProperty object with a name and a value.
	CIMProperty (const CIMName &name, const CIMDataType &dt)
	Create an CIMProperty object with a name and a type.
	CIMProperty (const CIMProperty &arg)
	Copy constructor.
	CIMProperty (const detail::CIMPropertyRepRef &rep)
	~CIMProperty ()
	Destroy this CIMProperty object.
virtual void	setNull ()
	Set this to a null object.
CIMProperty &	operator= (const CIMProperty &arg)
	Assignment operator.
	operator safe_bool () const
bool	operator! () const
CIMQualifierArray	getQualifiers () const
	Get the qualifiers for this property.
CIMProperty &	setQualifiers (const CIMQualifierArray &quals)
	Set the qualifiers for this property object.
CIMName	getOriginClass () const
	Get the origin class for this property.
CIMProperty &	setOriginClass (const CIMName &originCls)
	Set the origin class for this property.
CIMProperty &	setValue (const CIMValue &val)
	Set the value of this property.
CIMValue	getValue () const
CIMValue	getValueT () const
CIMProperty &	setDataType (const CIMDataType &type)
	Set the data type for this property.
CIMProperty &	setDataType (const CIMDataType::Type &type)
	Set the data type for this property.
CIMDataType	getDataType () const
Int32	getSize () const
CIMProperty &	setDataSize (Int32 size)
	Set the size of the data for this property.
CIMProperty &	setOverridingProperty (const CIMName &opname)
	Set the overriding property name.
CIMName	getOverridingProperty () const
bool	isReference () const
CIMQualifier	getQualifier (const CIMName &name) const
	Get the qualifier associated with the given name from this property.
CIMQualifier	getQualifierT (const CIMName &name) const
	Get the qualifier associated with the given name from this property.
CIMProperty &	setQualifier (const CIMQualifier &qual)
	Set the value of a qaulifier on this property.
bool	addQualifier (const CIMQualifier &qual)
	Add a qualifier to this property.
bool	removeQualifier (const CIMName &name)
	Remove a qualifier from this property.
bool	isKey () const
CIMProperty &	setPropagated (bool propagated=true)
	Set the propagated flag on this property.
bool	getPropagated () const
	Get the propagated flag for this property.
virtual CIMName	getName () const
virtual void	setName (const CIMName &name)
	Set the name of this CIMProperty object.
virtual void	writeObject (std::ostream &ostrm) const
	Write this CIMProperty to the given output stream.
virtual void	writeObject (std::ostream &ostrm, WBEMFlags::EIncludeQualifiersFlag includeQualifiers) const
	Write this CIMProperty, optionally omitting all qualifiers except the key qualifier.
virtual void	readObject (std::istream &istrm)
	Read this CIIMProperty object from the given input stream.
virtual String	toString () const
virtual String	toMOF () const
bool	hasTrueQualifier (const CIMName &name) const
	Test if this property has a qualifier that is a boolean type with a value of true.
detail::CIMPropertyRepRef	getRep () const
Static Public Attributes
static const char *const	NAME_PROPERTY = "Name"
Private Attributes
detail::CIMPropertyRepRef	m_rep

---

Detailed Description

The CIMProperty class encapsulates all data and functionality petinent to a CIM property found in a CIM class or a CIM Instance.

Definition at line 54 of file OWBI1_CIMProperty.hpp.

---

Member Typedef Documentation

typedef detail::CIMPropertyRepRef CIMProperty::* OWBI1::CIMProperty::safe_bool

Definition at line 111 of file OWBI1_CIMProperty.hpp.

---

Constructor & Destructor Documentation

OWBI1::CIMProperty::CIMProperty (   )

Create a new CIMProperty object. Definition at line 63 of file OWBI1_CIMProperty.cpp.

OWBI1::CIMProperty::CIMProperty (  CIMNULL_t   )  [explicit]

Create a NULL CIMProperty object. Definition at line 68 of file OWBI1_CIMProperty.cpp.

OWBI1::CIMProperty::CIMProperty (  const CIMName &  name  )  [explicit]

Create an CIMProperty object with a given name. Parameters: name  The name for this CIMProperty object Definition at line 73 of file OWBI1_CIMProperty.cpp.

OWBI1::CIMProperty::CIMProperty (  const char *  name  )  [explicit]

Create an CIMProperty object with a given name. Parameters: name  The name for this CIMProperty object as a NULL terminated string. Definition at line 78 of file OWBI1_CIMProperty.cpp.

OWBI1::CIMProperty::CIMProperty (  const CIMName &  name, const CIMValue &  value )

Create an CIMProperty object with a name and a value. Parameters: name  The name for this CIMProperty object. value  The value of this CIMProperty Definition at line 83 of file OWBI1_CIMProperty.cpp.

OWBI1::CIMProperty::CIMProperty (  const CIMName &  name, const CIMDataType &  dt )

Create an CIMProperty object with a name and a type. Parameters: name  The name for this CIMProperty object. dt  The type of this CIMProperty Definition at line 88 of file OWBI1_CIMProperty.cpp.

OWBI1::CIMProperty::CIMProperty (  const CIMProperty &  arg  )

Copy constructor. Parameters: arg  The CIMProperty to make this object a copy of. Definition at line 93 of file OWBI1_CIMProperty.cpp.

OWBI1::CIMProperty::CIMProperty (  const detail::CIMPropertyRepRef &  rep  )  [explicit]

Definition at line 99 of file OWBI1_CIMProperty.cpp.

OWBI1::CIMProperty::~CIMProperty (   )

Destroy this CIMProperty object. Definition at line 105 of file OWBI1_CIMProperty.cpp.

---

Member Function Documentation

bool OWBI1::CIMProperty::addQualifier (  const CIMQualifier &  qual  )

Add a qualifier to this property. Parameters: qual  The CIMQualifier to add to this property. Returns: true if added, false if it already exists Definition at line 248 of file OWBI1_CIMProperty.cpp. References OWBI1::CIMQualifier::getRep(), and m_rep.

CIMDataType OWBI1::CIMProperty::getDataType (   )  const

Returns: The CIMDataType for this property. Definition at line 186 of file OWBI1_CIMProperty.cpp. References m_rep.

CIMName OWBI1::CIMProperty::getName (   )  const [virtual]

Returns: The name of this CIMProperty Implements OWBI1::CIMElement. Definition at line 287 of file OWBI1_CIMProperty.cpp. References m_rep. Referenced by getValueT(), OWBI1::CIMInstance::setProperty(), OWBI1::CIMClass::setProperty(), and OWBI1::CIMInstance::updatePropertyValue().

CIMName OWBI1::CIMProperty::getOriginClass (   )  const

Get the origin class for this property. Returns: The name of the origin class of this property. Definition at line 136 of file OWBI1_CIMProperty.cpp. References m_rep.

CIMName OWBI1::CIMProperty::getOverridingProperty (   )  const

Returns: The name of the overriding property. Definition at line 212 of file OWBI1_CIMProperty.cpp. References m_rep.

bool OWBI1::CIMProperty::getPropagated (   )  const

Get the propagated flag for this property. Returns: true if this property is propagated. Otherwise false. Definition at line 281 of file OWBI1_CIMProperty.cpp. References m_rep.

CIMQualifier OWBI1::CIMProperty::getQualifier (  const CIMName &  name  )  const

Get the qualifier associated with the given name from this property. Parameters: name  The name of the qualifier to retrieve. Returns: The CIMQualifier associated with the given name if there is one. Otherwise return a NULL CIMQualifier. Definition at line 224 of file OWBI1_CIMProperty.cpp. References m_rep, and name. Referenced by getQualifierT().

CIMQualifierArray OWBI1::CIMProperty::getQualifiers (   )  const

Get the qualifiers for this property. Returns: An CIMQualifierArray with the qualifiers for this property Definition at line 123 of file OWBI1_CIMProperty.cpp. References m_rep. Referenced by OWBI1::CIMInstance::createModifiedInstance().

CIMQualifier OWBI1::CIMProperty::getQualifierT (  const CIMName &  name  )  const

Get the qualifier associated with the given name from this property. Parameters: name  The name of the qualifier to retrieve. Returns: The CIMQualifier associated with the given name if there is one. Otherwise a NoSuchQualifierException is thrown. Definition at line 230 of file OWBI1_CIMProperty.cpp. References OWBI1::String::c_str(), getQualifier(), name, OWBI1_THROW, and OWBI1::String::toString().

detail::CIMPropertyRepRef OWBI1::CIMProperty::getRep (   )  const

Referenced by OWBI1::operator<().

Int32 OWBI1::CIMProperty::getSize (   )  const

Returns: The size of the data associated with this property Definition at line 192 of file OWBI1_CIMProperty.cpp. References m_rep.

CIMValue OWBI1::CIMProperty::getValue (   )  const

Returns: The CIMValue object for this property. The value may be NULL. Definition at line 156 of file OWBI1_CIMProperty.cpp. References m_rep. Referenced by OWBI1::CIMInstance::getPropertyValue(), OWBI1::CIMInstance::propertyHasValue(), and OWBI1::CIMInstance::updatePropertyValue().

CIMValue OWBI1::CIMProperty::getValueT (   )  const

Returns: The CIMValue object for this property. Exceptions: NULLValueException  if the value is NULL. Definition at line 162 of file OWBI1_CIMProperty.cpp. References getName(), m_rep, and OWBI1_THROW.

bool OWBI1::CIMProperty::hasTrueQualifier (  const CIMName &  name  )  const

Test if this property has a qualifier that is a boolean type with a value of true. Parameters: name  The name of the qualifier to test. Returns: true if the qualifier exists and has a value of true. Definition at line 337 of file OWBI1_CIMProperty.cpp. References m_rep, and name.

bool OWBI1::CIMProperty::isKey (   )  const

Returns: true if this property has the key qualifier on it. Definition at line 268 of file OWBI1_CIMProperty.cpp. References m_rep. Referenced by OWBI1::CIMInstance::setProperty(), and OWBI1::CIMInstance::updatePropertyValue().

bool OWBI1::CIMProperty::isReference (   )  const

Returns: true if this property is a reference. Otherwise return false. Definition at line 218 of file OWBI1_CIMProperty.cpp. References m_rep.

OWBI1::CIMProperty::operator safe_bool (   )  const

Returns: true If this CIMProperty has an implementation. Definition at line 343 of file OWBI1_CIMProperty.cpp. References m_rep.

bool OWBI1::CIMProperty::operator! (   )  const

Definition at line 350 of file OWBI1_CIMProperty.cpp. References m_rep.

CIMProperty & OWBI1::CIMProperty::operator= (  const CIMProperty &  arg  )

Assignment operator. Parameters: arg  The CIMProperty object to assign to this one. Returns: A reference to this object after the assignment is made. Definition at line 116 of file OWBI1_CIMProperty.cpp. References m_rep.

virtual void OWBI1::CIMProperty::readObject (  std::istream &  istrm  )  [virtual]

Read this CIIMProperty object from the given input stream. Parameters: istrm  The input stream to read this CIMElement from. Implements OWBI1::SerializableIFC.

bool OWBI1::CIMProperty::removeQualifier (  const CIMName &  name  )

Remove a qualifier from this property. Parameters: qname  The name of the qualifier to remove. Returns: true if the qualifier was found and removed. Otherwise false. Definition at line 262 of file OWBI1_CIMProperty.cpp. References m_rep, and name.

CIMProperty & OWBI1::CIMProperty::setDataSize (  Int32  size  )

Set the size of the data for this property. Parameters: size  The size of the data associated with property. Returns: a reference to *this Definition at line 198 of file OWBI1_CIMProperty.cpp. References m_rep.

CIMProperty & OWBI1::CIMProperty::setDataType (  const CIMDataType::Type &  type  )

Set the data type for this property. Parameters: type  The CIMDataType::Type for this property Returns: a reference to *this Definition at line 180 of file OWBI1_CIMProperty.cpp. References setDataType().

CIMProperty & OWBI1::CIMProperty::setDataType (  const CIMDataType &  type  )

Set the data type for this property. Parameters: type  The CIMDataType for this property Returns: a reference to *this Definition at line 173 of file OWBI1_CIMProperty.cpp. References m_rep, and type. Referenced by setDataType().

void OWBI1::CIMProperty::setName (  const CIMName &  name  )  [virtual]

Set the name of this CIMProperty object. Parameters: name  The new name for this CIMProperty object. Implements OWBI1::CIMElement. Definition at line 293 of file OWBI1_CIMProperty.cpp. References m_rep, and name.

void OWBI1::CIMProperty::setNull (   )  [virtual]

Set this to a null object. Implements OWBI1::CIMBase. Definition at line 110 of file OWBI1_CIMProperty.cpp. References m_rep.

CIMProperty & OWBI1::CIMProperty::setOriginClass (  const CIMName &  originCls  )

Set the origin class for this property. Parameters: originCls  The name of the origin class of this property. Returns: a reference to *this Definition at line 142 of file OWBI1_CIMProperty.cpp. References OWBI1::CIMName::getRep(), and m_rep.

CIMProperty & OWBI1::CIMProperty::setOverridingProperty (  const CIMName &  opname  )

Set the overriding property name. Parameters: opname  The name of the overriding property. Returns: a reference to *this Definition at line 205 of file OWBI1_CIMProperty.cpp. References OWBI1::CIMName::getRep(), and m_rep.

CIMProperty & OWBI1::CIMProperty::setPropagated (  bool  propagated = true  )

Set the propagated flag on this property. Parameters: propagated  If true this property is propagated. Otherwise false. Returns: a reference to *this Definition at line 274 of file OWBI1_CIMProperty.cpp. References m_rep.

CIMProperty & OWBI1::CIMProperty::setQualifier (  const CIMQualifier &  qual  )

Set the value of a qaulifier on this property. Parameters: qual  An CIMQualifier to use to update the property qualifier. Returns: a reference to *this Definition at line 241 of file OWBI1_CIMProperty.cpp. References OWBI1::CIMQualifier::getRep(), and m_rep.

CIMProperty & OWBI1::CIMProperty::setQualifiers (  const CIMQualifierArray &  quals  )

Set the qualifiers for this property object. Parameters: quals  An CIMQualifierArray with the new qualifiers for this property object. Returns: a reference to *this Definition at line 129 of file OWBI1_CIMProperty.cpp. References m_rep. Referenced by OWBI1::CIMInstance::createModifiedInstance().

CIMProperty & OWBI1::CIMProperty::setValue (  const CIMValue &  val  )

Set the value of this property. Parameters: val  The CIMValue for this property. Returns: a reference to *this Definition at line 149 of file OWBI1_CIMProperty.cpp. References m_rep, and val.

String OWBI1::CIMProperty::toMOF (   )  const [virtual]

Returns: An String that contains the MOF representation of this CIMProperty object. Implements OWBI1::CIMBase. Definition at line 323 of file OWBI1_CIMProperty.cpp. References m_rep.

String OWBI1::CIMProperty::toString (   )  const [virtual]

Returns: The string representation of this CIMProperty. Implements OWBI1::CIMElement. Definition at line 317 of file OWBI1_CIMProperty.cpp. References m_rep.

virtual void OWBI1::CIMProperty::writeObject (  std::ostream &  ostrm, WBEMFlags::EIncludeQualifiersFlag  includeQualifiers )  const [virtual]

Write this CIMProperty, optionally omitting all qualifiers except the key qualifier. Parameters: ostrm  The output stream to write this object to. includeQulifiers  If true write all qualifiers for property

virtual void OWBI1::CIMProperty::writeObject (  std::ostream &  ostrm  )  const [virtual]

Write this CIMProperty to the given output stream. Parameters: ostrm  The output stream to write this object to. Implements OWBI1::SerializableIFC.

---

Member Data Documentation

detail::CIMPropertyRepRef OWBI1::CIMProperty::m_rep [private]

Definition at line 297 of file OWBI1_CIMProperty.hpp. Referenced by addQualifier(), getDataType(), getName(), getOriginClass(), getOverridingProperty(), getPropagated(), getQualifier(), getQualifiers(), getSize(), getValue(), getValueT(), hasTrueQualifier(), isKey(), isReference(), operator safe_bool(), operator!(), operator=(), removeQualifier(), setDataSize(), setDataType(), setName(), setNull(), setOriginClass(), setOverridingProperty(), setPropagated(), setQualifier(), setQualifiers(), setValue(), toMOF(), and toString().

const char *const OWBI1::CIMProperty::NAME_PROPERTY = "Name" [static]

Definition at line 57 of file OWBI1_CIMProperty.hpp.

---

The documentation for this class was generated from the following files:

• OWBI1_CIMProperty.hpp
• OWBI1_CIMProperty.cpp

---
