OWBI1::CIMScope Class Reference

The CIMScope class encapsulated the data and functionality the is associated with CIM scopes. More...

#include <OWBI1_CIMScope.hpp>

Inheritance diagram for OWBI1::CIMScope:

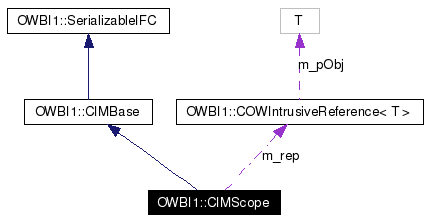

[legend]Collaboration diagram for OWBI1::CIMScope:


Public Types
typedef detail::CIMScopeRepRef CIMScope::*	safe_bool
enum	Scope { BAD = 0, SCHEMA = 1, CLASS = 2, ASSOCIATION = 3, INDICATION = 4, PROPERTY = 5, REFERENCE = 6, METHOD = 7, PARAMETER = 8, QUALIFIER = 9, ANY = 11, MAXSCOPE = 12 }
Public Member Functions
	CIMScope ()
	Create an invalid scope.
	CIMScope (Scope scopeVal)
	Create a scope with a specified scoping value.
	CIMScope (const CIMScope &arg)
	Copy constructor.
	CIMScope (const detail::CIMScopeRepRef &rep)
	~CIMScope ()
virtual void	setNull ()
	Set this to a null object.
CIMScope &	operator= (const CIMScope &arg)
	Assignment operator.
Scope	getScope () const
bool	equals (const CIMScope &arg) const
	Determine if another scope is equal to this one.
bool	operator== (const CIMScope &arg) const
	Determine if another scope is equal to this one.
bool	operator!= (const CIMScope &arg) const
	Determine if another scope is not equal to this one.
	operator safe_bool () const
bool	operator! () const
virtual String	toString () const
virtual String	toMOF () const
virtual void	readObject (std::istream &istrm)
	Read this object from an input stream.
virtual void	writeObject (std::ostream &ostrm) const
	Write this object to an output stream.
detail::CIMScopeRepRef	getRep () const
Private Attributes
detail::CIMScopeRepRef	m_rep

Detailed Description

The CIMScope class encapsulated the data and functionality the is associated with CIM scopes.

Definition at line 51 of file OWBI1_CIMScope.hpp.

Member Typedef Documentation

typedef detail::CIMScopeRepRef CIMScope::* OWBI1::CIMScope::safe_bool

Definition at line 121 of file OWBI1_CIMScope.hpp.

Member Enumeration Documentation

enum OWBI1::CIMScope::Scope

Enumerator:

BAD

SCHEMA

CLASS

ASSOCIATION

INDICATION

PROPERTY

REFERENCE

METHOD

PARAMETER

QUALIFIER

ANY

MAXSCOPE

Definition at line 55 of file OWBI1_CIMScope.hpp.

Constructor & Destructor Documentation

OWBI1::CIMScope::CIMScope ( )

Create an invalid scope.

Definition at line 50 of file OWBI1_CIMScope.cpp.

OWBI1::CIMScope::CIMScope ( Scope scopeVal )

Create a scope with a specified scoping value.

Parameters:

scopeVal The scoping value.

Definition at line 56 of file OWBI1_CIMScope.cpp.

OWBI1::CIMScope::CIMScope ( const CIMScope & arg )

Copy constructor.

Parameters:

arg The CIMScopy to make this object a copy of.

Definition at line 61 of file OWBI1_CIMScope.cpp.

OWBI1::CIMScope::CIMScope ( const detail::CIMScopeRepRef & rep ) [explicit]

Definition at line 68 of file OWBI1_CIMScope.cpp.

OWBI1::CIMScope::~CIMScope ( )

Definition at line 74 of file OWBI1_CIMScope.cpp.

Member Function Documentation

bool OWBI1::CIMScope::equals ( const CIMScope & arg ) const

Determine if another scope is equal to this one.

Parameters:

arg The scope to check for equality against.

Returns:
true if arg is equal to this scope. Otherwise false.

Definition at line 95 of file OWBI1_CIMScope.cpp.
References m_rep.
Referenced by operator!=(), and operator==().

CIMScopeRepRef OWBI1::CIMScope::getRep ( ) const

Definition at line 163 of file OWBI1_CIMScope.cpp.
References m_rep.
Referenced by OWBI1::CIMQualifierType::addScope(), OWBI1::CIMQualifierType::hasScope(), and OWBI1::operator<().

CIMScope::Scope OWBI1::CIMScope::getScope ( ) const

Returns:
The scoping value of this scope.

Definition at line 88 of file OWBI1_CIMScope.cpp.
References m_rep.

OWBI1::CIMScope::operator safe_bool ( ) const

Returns:
true if this is a valid flavor

Definition at line 113 of file OWBI1_CIMScope.cpp.
References m_rep.

bool OWBI1::CIMScope::operator! ( ) const

Definition at line 119 of file OWBI1_CIMScope.cpp.
References m_rep.

bool OWBI1::CIMScope::operator!= ( const CIMScope & arg ) const

Determine if another scope is not equal to this one.

Parameters:

arg The scope to check for inequality against.

Returns:
true if arg is not equal to this scope. Otherwise false.

Definition at line 107 of file OWBI1_CIMScope.cpp.
References equals().

CIMScope & OWBI1::CIMScope::operator= ( const CIMScope & arg )

Assignment operator.

Parameters:

arg The CIMScopy to assign to this object.

Returns:
A reference to this object after the assignment has been made.

Definition at line 80 of file OWBI1_CIMScope.cpp.
References m_rep.

bool OWBI1::CIMScope::operator== ( const CIMScope & arg ) const

Determine if another scope is equal to this one.

Parameters:

arg The scope to check for equality against.

Returns:
true if arg is equal to this scope. Otherwise false.

Definition at line 101 of file OWBI1_CIMScope.cpp.
References equals().

virtual void OWBI1::CIMScope::readObject ( std::istream & istrm ) [virtual]

Read this object from an input stream.

Parameters:

istrm The input stream to read this object from.

Implements OWBI1::SerializableIFC.

void OWBI1::CIMScope::setNull ( ) [virtual]

Set this to a null object.

Implements OWBI1::CIMBase.
Definition at line 156 of file OWBI1_CIMScope.cpp.
References m_rep.

String OWBI1::CIMScope::toMOF ( ) const [virtual]

Returns:
The MOF representation of this scope as an String.

Implements OWBI1::CIMBase.
Definition at line 137 of file OWBI1_CIMScope.cpp.
References m_rep.
Referenced by toString().

String OWBI1::CIMScope::toString ( ) const [virtual]

Returns:
The string representation of this scopy

Implements OWBI1::CIMBase.
Definition at line 131 of file OWBI1_CIMScope.cpp.
References toMOF().

virtual void OWBI1::CIMScope::writeObject ( std::ostream & ostrm ) const [virtual]

Write this object to an output stream.

Parameters:

ostrm The output stream to write this object to.

Implements OWBI1::SerializableIFC.

Member Data Documentation

detail::CIMScopeRepRef OWBI1::CIMScope::m_rep [private]

Definition at line 148 of file OWBI1_CIMScope.hpp.
Referenced by equals(), getRep(), getScope(), operator safe_bool(), operator!(), operator=(), setNull(), and toMOF().

The documentation for this class was generated from the following files:
