_CMPIResultFT Struct Reference

This structure is a table of pointers providing access to Result support sevices. More...

#include <cmpift.h>

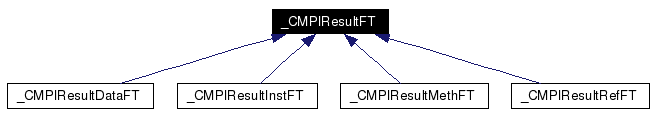

Inheritance diagram for _CMPIResultFT:

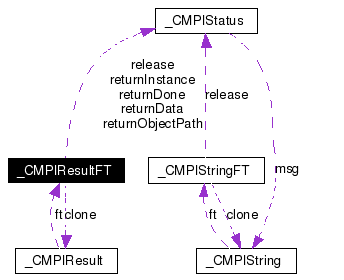

[legend]Collaboration diagram for _CMPIResultFT:

[legend]List of all members.

Public Attributes
int	ftVersion
	Function table version.
CMPIStatus(*	release )(CMPIResult *rslt)
	The Result object will not be used any further and may be freed by CMPI run time system.
CMPIResult *(*	clone )(const CMPIResult *rslt, CMPIStatus *rc)
	Create an independent copy of this Result object.
CMPIStatus(*	returnData )(const CMPIResult *rslt, const CMPIValue *value, const CMPIType type)
	Return a value/type pair.
CMPIStatus(*	returnInstance )(const CMPIResult *rslt, const CMPIInstance *inst)
	Return a Instance object.
CMPIStatus(*	returnObjectPath )(const CMPIResult *rslt, const CMPIObjectPath *ref)
	Return a ObjectPath object.
CMPIStatus(*	returnDone )(const CMPIResult *rslt)
	Indicates no further data to be returned.

---

Detailed Description

This structure is a table of pointers providing access to Result support sevices.

Result support services are used to explicity return data produced by provider functions.

Definition at line 802 of file cmpift.h.

---

Member Data Documentation

CMPIResult*(* _CMPIResultFT::clone)(const CMPIResult *rslt, CMPIStatus *rc)

Create an independent copy of this Result object. Parameters: rslt  Result this pointer. rc  Output: Service return status (suppressed when NULL). Returns: Pointer to copied Result object.

int _CMPIResultFT::ftVersion

Function table version. Definition at line 806 of file cmpift.h.

CMPIStatus(* _CMPIResultFT::release)(CMPIResult *rslt)

The Result object will not be used any further and may be freed by CMPI run time system. Parameters: rslt  Result this pointer. Returns: Service return status.

CMPIStatus(* _CMPIResultFT::returnData)(const CMPIResult *rslt, const CMPIValue *value, const CMPIType type)

Return a value/type pair. Parameters: rslt  Result this pointer. value  Address of a Value object. type  Type of the Value object. Returns: Service return status. Referenced by CmpiResult::returnData().

CMPIStatus(* _CMPIResultFT::returnDone)(const CMPIResult *rslt)

Indicates no further data to be returned. Parameters: rslt  Result this pointer. Returns: Service return status. Referenced by CmpiResult::returnDone().

CMPIStatus(* _CMPIResultFT::returnInstance)(const CMPIResult *rslt, const CMPIInstance *inst)

Return a Instance object. Parameters: rslt  Result this pointer. inst  Instance to be returned. Returns: Service return status. Referenced by CmpiResult::returnData().

CMPIStatus(* _CMPIResultFT::returnObjectPath)(const CMPIResult *rslt, const CMPIObjectPath *ref)

Return a ObjectPath object. Parameters: rslt  Result this pointer. ref  ObjectPath to be returned. Returns: Service return status. Referenced by CmpiResult::returnData().

---

The documentation for this struct was generated from the following file:

• cmpift.h

---
