OW_NAMESPACE::HTTPClient Class Reference

HTTPClient encapulates the functionality of a CIM HTTP Client. More...

#include <OW_HTTPClient.hpp>

Inheritance diagram for OW_NAMESPACE::HTTPClient:

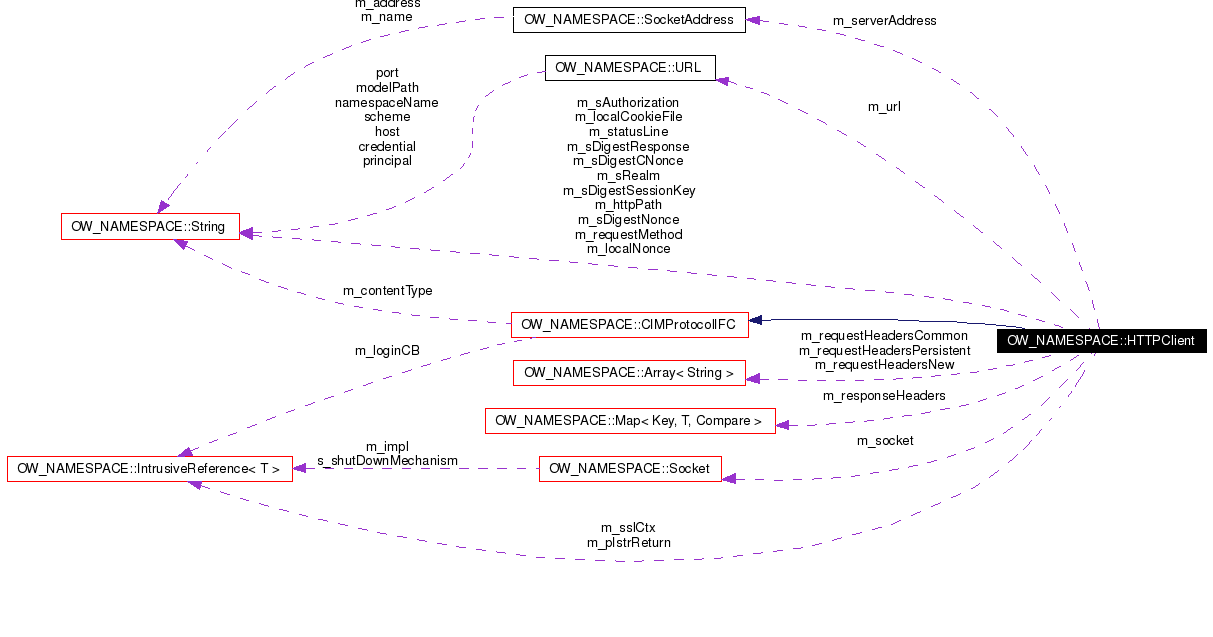

[legend]Collaboration diagram for OW_NAMESPACE::HTTPClient:


Public Member Functions
	HTTPClient (const String &url, const SSLClientCtxRef &sslCtx=SSLClientCtxRef())
	Creates an httpClient object.
virtual	~HTTPClient ()
virtual Reference< std::iostream >	beginRequest (const String &methodName, const String &cimObject)
virtual CIMProtocolIStreamIFCRef	endRequest (const Reference< std::iostream > &request, const String &methodName, const String &cimObject, ERequestType requestType, const String &cimProtocolVersion)
	Establishes a connection (if not already connected) to the CIMOM and sends a request.
virtual CIMFeatures	getFeatures ()
	Sends an OPTIONS request to the HTTP server, and reports the results.
SocketAddress	getLocalAddress () const
	Gets the address of the local machine.
SocketAddress	getPeerAddress () const
	Gets the address of the peer connection.
void	setHTTPPath (const String &newPath)
	Set the HTTP path to use.
void	assumeBasicAuth ()
	After calling this function, the next request will (re)connect and send credentials using basic authentication.
virtual void	close ()
	Close the connetion to the CIMOM.
void	addCustomHeader (const String &name, const String &value)
	Add a custom header to add to requests.
bool	getResponseHeader (const String &hdrName, String &valueOut) const
	Retrieve a given header value from the server response.
virtual void	setReceiveTimeout (int seconds)
	Set the receive timeout on the socket.
virtual int	getReceiveTimeout () const
	Get the receive timeout.
virtual void	setSendTimeout (int seconds)
	Set the send timeout on the socket.
virtual int	getSendTimeout () const
	Get the send timeout.
virtual void	setConnectTimeout (int seconds)
	Set the connect timeout on the socket.
virtual int	getConnectTimeout () const
	Get the connect timeout.
virtual void	setTimeouts (int seconds)
	Set all timeouts (send, receive, connect).
Static Public Attributes
static const int	INFINITE_TIMEOUT = -1
Private Types
enum	Resp_t { FATAL, RETRY, GOOD, CONTINUE }
enum	EStatusLineSummary { E_STATUS_GOOD, E_STATUS_ERROR }
	if the server has disconnected or sent us something since our last request (remember connections are persistent), we need to process it before we send another request, or if we get something while we are sending, we need to look at the header to know if we should keep sending data. More...
Private Member Functions
void	setUrl ()
void	cleanUpIStreams ()
void	receiveAuthentication ()
void	sendAuthorization ()
bool	receiveOptions (void)
bool	headerHasKey (const String &key)
String	getHeaderValue (const String &key)
void	addHeaderCommon (const String &key, const String &value)
void	addHeaderPersistent (const String &key, const String &value)
void	addHeaderNew (const String &key, const String &value)
void	sendHeaders (const String &method, const String &prot)
Resp_t	processHeaders (String &reasonPhrase)
	precondition: m_statusLine is set to the status line, and the headers have been read
CIMProtocolIStreamIFCRef	convertToFiniteStream ()
void	prepareForRetry ()
void	handleAuth ()
void	checkConnection ()
String	checkResponse (Resp_t &rt)
void	prepareHeaders ()
void	sendDataToServer (const Reference< TempFileStream > &tfs, const String &methodName, const String &cimObject, ERequestType requestType)
void	getCredentialsIfNecessary ()
	If no credentials were provided in the url to the constructor, but an authentication callback was given, then call the callback to get credentials.
void	copyStreams (std::ostream &ostr, std::istream &istr)
void	getStatusLine ()
	sets m_statusLine if there is a status line to be read, this function doesn't block.
EStatusLineSummary	checkAndExamineStatusLine ()
	HTTPClient (const HTTPClient &)
HTTPClient &	operator= (const HTTPClient &)
Private Attributes
String	m_sAuthorization
String	m_sRealm
String	m_sDigestNonce
String	m_sDigestCNonce
UInt8	m_iDigestNonceCount
String	m_sDigestSessionKey
String	m_sDigestResponse
SocketAddress	m_serverAddress
URL	m_url
HTTPHeaderMap	m_responseHeaders
Array< String >	m_requestHeadersPersistent
Array< String >	m_requestHeadersCommon
Array< String >	m_requestHeadersNew
CIMProtocolIStreamIFCRef	m_pIstrReturn
SSLClientCtxRef	m_sslCtx
Socket	m_socket
String	m_requestMethod
bool	m_authRequired
std::istream &	m_istr
std::ostream &	m_ostr
bool	m_doDeflateOut
int	m_retryCount
String	m_httpPath
bool	m_uselocalAuthentication
String	m_localNonce
String	m_localCookieFile
String	m_statusLine

Detailed Description

HTTPClient encapulates the functionality of a CIM HTTP Client.

It handles the details of the HTTP protocol.

By default the connection timeout is set to 1 minute, and the send and receive timeouts are set to 10 minutes.

Thread safety: non-reentrant. Copy semantics: Non-copyable. Exception safety: Basic.

Definition at line 66 of file OW_HTTPClient.hpp.

Member Enumeration Documentation

enum OW_NAMESPACE::HTTPClient::EStatusLineSummary [private]

if the server has disconnected or sent us something since our last request (remember connections are persistent), we need to process it *before* we send another request, or if we get something while we are sending, we need to look at the header to know if we should keep sending data.
This function doesn't block, it just looks to see if there is a http status line on the incoming socket, and if so it reads it and examines the status code. If there is no input or If the status code < 300, E_STATUS_GOOD is returned, else E_STATUS_ERROR.
Enumerator:

E_STATUS_GOOD

E_STATUS_ERROR

Definition at line 341 of file OW_HTTPClient.hpp.

enum OW_NAMESPACE::HTTPClient::Resp_t [private]

Enumerator:

FATAL

RETRY

GOOD

CONTINUE

Definition at line 243 of file OW_HTTPClient.hpp.

Constructor & Destructor Documentation

OW_NAMESPACE::HTTPClient::HTTPClient ( const String & url,

const SSLClientCtxRef & sslCtx = SSLClientCtxRef()

)

Creates an httpClient object.
This represents one client connection to a CIMOM.
Parameters:

url The URL to the CIMOM the client should connect to. URLs have this form: [scheme"://"][[<principal>][":"<credential>]"@"]<host>[":"<port>]["/"<namespace name>="">["/:"<model path>="">]] The only required element is <host>

Standard WBEM schemes are: cimxml.wbem, cimxml.wbems, http, https. OW specific WBEM schemes are: owbinary.wbem, owbinary.wbems
A port may be a number to indicate a TCP port, or it may be the special value owipc which indicates the Unix Domain Socket for the system.
example: "https://jdd:test@myhost.com:5989/root/cimv2"
If (principal == "" && (host == "localhost" || host == "127.0.0.1")) then HTTPClient will attempt to use OWLocal authentication.

Exceptions:

SocketException If an SSL connection was requested, but support for SSL is not available.

Definition at line 65 of file OW_HTTPClient.cpp.

OW_NAMESPACE::HTTPClient::~HTTPClient ( ) [virtual]

Definition at line 116 of file OW_HTTPClient.cpp.
References cleanUpIStreams().

OW_NAMESPACE::HTTPClient::HTTPClient ( const HTTPClient & ) [private]

Member Function Documentation

void OW_NAMESPACE::HTTPClient::addCustomHeader ( const String & name,

const String & value

)

Add a custom header to add to requests.
"<name>: <value>" will be added to each request.
Parameters:

name The header name

value The header value

Definition at line 353 of file OW_HTTPClient.cpp.
References addHeaderPersistent(), and name.

void OW_NAMESPACE::HTTPClient::addHeaderCommon ( const String & key,

const String & value

) [inline, private]

Definition at line 290 of file OW_HTTPClient.hpp.
References OW_NAMESPACE::HTTPUtils::addHeader().

void OW_NAMESPACE::HTTPClient::addHeaderNew ( const String & key,

const String & value

) [inline, private]

Definition at line 298 of file OW_HTTPClient.hpp.
References OW_NAMESPACE::HTTPUtils::addHeader().
Referenced by sendDataToServer().

void OW_NAMESPACE::HTTPClient::addHeaderPersistent ( const String & key,

const String & value

) [inline, private]

Definition at line 294 of file OW_HTTPClient.hpp.
References OW_NAMESPACE::HTTPUtils::addHeader().
Referenced by addCustomHeader().

void OW_NAMESPACE::HTTPClient::assumeBasicAuth ( )

After calling this function, the next request will (re)connect and send credentials using basic authentication.
This could be a security risk, and should only be used if you understand the risks. Using this avoids the extra round-trip that typically happens with http authentication.
Definition at line 1059 of file OW_HTTPClient.cpp.
References close(), m_authRequired, m_sAuthorization, and m_uselocalAuthentication.

Reference< std::iostream > OW_NAMESPACE::HTTPClient::beginRequest ( const String & methodName,

const String & cimObject

) [virtual]

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 593 of file OW_HTTPClient.cpp.

HTTPClient::EStatusLineSummary OW_NAMESPACE::HTTPClient::checkAndExamineStatusLine ( ) [private]

Definition at line 431 of file OW_HTTPClient.cpp.
References E_STATUS_ERROR, getStatusLine(), OW_NAMESPACE::Socket::isConnected(), m_socket, m_statusLine, OW_NAMESPACE::String::tokenize(), and OW_NAMESPACE::Socket::waitForInput().
Referenced by copyStreams().

void OW_NAMESPACE::HTTPClient::checkConnection ( ) [private]

Definition at line 958 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Socket::connect(), OW_NAMESPACE::Socket::disconnect(), OW_NAMESPACE::Socket::isConnected(), m_istr, m_ostr, m_serverAddress, and m_socket.
Referenced by getFeatures(), and sendDataToServer().

String OW_NAMESPACE::HTTPClient::checkResponse ( Resp_t & rt ) [private]

Returns:
The reason phrase from the HTTP status line of the response

Definition at line 978 of file OW_HTTPClient.cpp.
References close(), CONTINUE, FATAL, OW_NAMESPACE::Socket::getReceiveTimeout(), getStatusLine(), m_istr, m_responseHeaders, m_socket, m_statusLine, OW_THROW, OW_NAMESPACE::HTTPUtils::parseHeader(), prepareForRetry(), processHeaders(), and OW_NAMESPACE::Socket::receiveTimeOutExpired().
Referenced by getFeatures().

void OW_NAMESPACE::HTTPClient::cleanUpIStreams ( ) [private]

Definition at line 129 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::HTTPUtils::eatEntity(), and m_pIstrReturn.
Referenced by ~HTTPClient().

void OW_NAMESPACE::HTTPClient::close ( ) [virtual]

Close the connetion to the CIMOM.
This will free resources used for the client session.
Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1068 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Socket::disconnect(), and m_socket.
Referenced by assumeBasicAuth(), checkResponse(), and processHeaders().

CIMProtocolIStreamIFCRef OW_NAMESPACE::HTTPClient::convertToFiniteStream ( ) [private]

Definition at line 922 of file OW_HTTPClient.cpp.
References getHeaderValue(), headerHasKey(), OW_NAMESPACE::HTTPChunkedIStream, m_istr, OW_THROW, and OW_NAMESPACE::String::toUInt64().
Referenced by prepareForRetry().

void OW_NAMESPACE::HTTPClient::copyStreams ( std::ostream & ostr,

std::istream & istr

) [private]

Definition at line 465 of file OW_HTTPClient.cpp.
References checkAndExamineStatusLine(), and E_STATUS_ERROR.

CIMProtocolIStreamIFCRef OW_NAMESPACE::HTTPClient::endRequest ( const Reference< std::iostream > & request,

const String & methodName,

const String & cimObject,

ERequestType requestType,

const String & cimProtocolVersion

) [virtual]

Establishes a connection (if not already connected) to the CIMOM and sends a request.
An istream& is returned containing the response from the CIMOM, after protocol processing is done.
Parameters:

request An istream& containing the request to be send to the CIMOM.

methodName The CIM method that corresponds to the request. the CIM object the request applies to. If this is an intrinsic method, it must be a namespace. If an extrinsic method is being invoked, it must be a class or instance path in ObjectPath format.

requestType The type of request, currently must be one of E_CIM_OPERATION_REQUEST, E_CIM_EXPORT_REQUEST

cimProtocolVersion The version of the CIM Protocol in use

Returns:
an istream& containing the response from the server

Exceptions:

HTTPException

SocketException

Definition at line 600 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Reference< T >::cast_to(), OW_ASSERT, and OW_THROW.

int OW_NAMESPACE::HTTPClient::getConnectTimeout ( ) const [virtual]

Get the connect timeout.

Returns:
The number of seconds of the connect timeout

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1111 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Socket::getConnectTimeout(), and m_socket.

void OW_NAMESPACE::HTTPClient::getCredentialsIfNecessary ( ) [private]

If no credentials were provided in the url to the constructor, but an authentication callback was given, then call the callback to get credentials.
m_url.principal != ""
Exceptions:

HTTPException if the postcondition cannot be satisfied.

Definition at line 318 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::URL::credential, OW_NAMESPACE::String::empty(), OW_NAMESPACE::CIMProtocolIFC::m_loginCB, m_sRealm, m_url, name, OW_THROW, OW_NAMESPACE::URL::principal, and OW_NAMESPACE::URL::toString().
Referenced by sendAuthorization().

CIMFeatures OW_NAMESPACE::HTTPClient::getFeatures ( ) [virtual]

Sends an OPTIONS request to the HTTP server, and reports the results.

Returns:
a CIMFeatures object listing the features of the CIMOM.

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 668 of file OW_HTTPClient.cpp.
References checkConnection(), checkResponse(), OW_NAMESPACE::Map< Key, T, Compare >::clear(), OW_NAMESPACE::Array< T >::clear(), OW_NAMESPACE::String::erase(), OW_NAMESPACE::CIMFeatures::extURL, FATAL, getHeaderValue(), handleAuth(), OW_NAMESPACE::String::indexOf(), OW_NAMESPACE::String::length(), m_doDeflateOut, m_ostr, m_requestHeadersNew, m_requestMethod, m_responseHeaders, m_statusLine, OW_NAMESPACE::String::npos, OW_THROW, prepareHeaders(), RETRY, sendHeaders(), OW_NAMESPACE::String::substring(), and OW_NAMESPACE::String::trim().

String OW_NAMESPACE::HTTPClient::getHeaderValue ( const String & key ) [inline, private]

Definition at line 286 of file OW_HTTPClient.hpp.
References OW_NAMESPACE::HTTPUtils::getHeaderValue().
Referenced by convertToFiniteStream(), getFeatures(), processHeaders(), and receiveAuthentication().

SocketAddress OW_NAMESPACE::HTTPClient::getLocalAddress ( ) const [virtual]

Gets the address of the local machine.

Returns:
An SocketAddress corresponding to the local machine.

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1032 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Socket::connect(), OW_NAMESPACE::Socket::isConnected(), m_serverAddress, and m_socket.

SocketAddress OW_NAMESPACE::HTTPClient::getPeerAddress ( ) const [virtual]

Gets the address of the peer connection.

Returns:
An SocketAddress corresponding to the peer connection

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1042 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Socket::connect(), OW_NAMESPACE::Socket::isConnected(), m_serverAddress, and m_socket.

int OW_NAMESPACE::HTTPClient::getReceiveTimeout ( ) const [virtual]

Get the receive timeout.

Returns:
The number of seconds of the receive timeout

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1083 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Socket::getReceiveTimeout(), and m_socket.

bool OW_NAMESPACE::HTTPClient::getResponseHeader ( const String & hdrName,

String & valueOut

) const

Retrieve a given header value from the server response.

Parameters:

The name of the header to retrieve the value of (e.g. "Content-Language")

Output param that will contain the value of the header.

Returns:
true if the header exists. Otherwise false.

Definition at line 359 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::HTTPUtils::getHeaderValue(), OW_NAMESPACE::HTTPUtils::headerHasKey(), and m_responseHeaders.

int OW_NAMESPACE::HTTPClient::getSendTimeout ( ) const [virtual]

Get the send timeout.

Returns:
The number of seconds of the send timeout

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1097 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Socket::getSendTimeout(), and m_socket.

void OW_NAMESPACE::HTTPClient::getStatusLine ( ) [private]

sets m_statusLine if there is a status line to be read, this function doesn't block.

Definition at line 968 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::String::empty(), OW_NAMESPACE::String::getLine(), m_istr, m_statusLine, and OW_NAMESPACE::String::trim().
Referenced by checkAndExamineStatusLine(), and checkResponse().

void OW_NAMESPACE::HTTPClient::handleAuth ( ) [private]

Definition at line 947 of file OW_HTTPClient.cpp.
References m_authRequired, m_uselocalAuthentication, receiveAuthentication(), and sendAuthorization().
Referenced by getFeatures(), and sendDataToServer().

bool OW_NAMESPACE::HTTPClient::headerHasKey ( const String & key ) [inline, private]

Definition at line 282 of file OW_HTTPClient.hpp.
References OW_NAMESPACE::HTTPUtils::headerHasKey().
Referenced by convertToFiniteStream().

HTTPClient& OW_NAMESPACE::HTTPClient::operator= ( const HTTPClient & ) [private]

void OW_NAMESPACE::HTTPClient::prepareForRetry ( ) [private]

Definition at line 762 of file OW_HTTPClient.cpp.
References convertToFiniteStream(), and OW_NAMESPACE::HTTPUtils::eatEntity().
Referenced by checkResponse().

void OW_NAMESPACE::HTTPClient::prepareHeaders ( ) [private]

Definition at line 1025 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::Map< Key, T, Compare >::clear(), OW_NAMESPACE::Array< T >::clear(), m_requestHeadersCommon, and m_responseHeaders.
Referenced by getFeatures().

HTTPClient::Resp_t OW_NAMESPACE::HTTPClient::processHeaders ( String & reasonPhrase ) [private]

precondition: m_statusLine is set to the status line, and the headers have been read

Parameters:

reasonPhrase - out parameter that will contain the reason phrase portion of the HTTP status line.

Definition at line 792 of file OW_HTTPClient.cpp.
References close(), getHeaderValue(), OW_NAMESPACE::String::indexOf(), OW_NAMESPACE::String::length(), m_statusLine, OW_NAMESPACE::String::npos, RETRY, OW_NAMESPACE::String::substring(), and OW_NAMESPACE::String::toInt32().
Referenced by checkResponse().

void OW_NAMESPACE::HTTPClient::receiveAuthentication ( ) [private]

Definition at line 252 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::String::empty(), getHeaderValue(), OW_NAMESPACE::String::tokenize(), and OW_NAMESPACE::String::toLowerCase().
Referenced by handleAuth().

bool OW_NAMESPACE::HTTPClient::receiveOptions ( void ) [private]

void OW_NAMESPACE::HTTPClient::sendAuthorization ( ) [private]

Definition at line 372 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::HTTPUtils::base64Encode(), OW_NAMESPACE::String::c_str(), OW_NAMESPACE::URL::credential, OW_NAMESPACE::HTTPUtils::DigestCalcResponse(), OW_NAMESPACE::String::empty(), OW_NAMESPACE::String::format(), getCredentialsIfNecessary(), OW_NAMESPACE::UserUtils::getEffectiveUserId(), OW_NAMESPACE::String::getLine(), m_httpPath, m_iDigestNonceCount, m_localCookieFile, m_localNonce, m_requestMethod, m_sAuthorization, m_sDigestCNonce, m_sDigestNonce, m_sDigestResponse, m_sDigestSessionKey, m_sRealm, m_url, ostr, OW_THROW_ERRNO_MSG, and OW_NAMESPACE::URL::principal.
Referenced by handleAuth().

void OW_NAMESPACE::HTTPClient::sendDataToServer ( const Reference< TempFileStream > & tfs,

const String & methodName,

const String & cimObject,

ERequestType requestType

) [private]

Definition at line 503 of file OW_HTTPClient.cpp.
References addHeaderNew(), checkConnection(), OW_NAMESPACE::String::equals(), OW_NAMESPACE::HTTPUtils::getCounterStr(), handleAuth(), and m_requestMethod.

void OW_NAMESPACE::HTTPClient::sendHeaders ( const String & method,

const String & prot

) [private]

Definition at line 772 of file OW_HTTPClient.cpp.
References i, m_httpPath, m_ostr, m_requestHeadersPersistent, and OW_NAMESPACE::Array< T >::size().
Referenced by getFeatures().

void OW_NAMESPACE::HTTPClient::setConnectTimeout ( int seconds ) [virtual]

Set the connect timeout on the socket.

Parameters:

seconds the number of seconds for the connect timeout

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1104 of file OW_HTTPClient.cpp.
References m_socket, and OW_NAMESPACE::Socket::setConnectTimeout().

void OW_NAMESPACE::HTTPClient::setHTTPPath ( const String & newPath )

Set the HTTP path to use.
Previously this was specified in the URL, however now with the WBEM URI spec, that portion of the URL is allocated to the namespace name. To use a different HTTP path (the path the M-POST is sent to), call this function. An initial / will not be prepended. The default HTTP path is "/cimom"

Parameters:

newPath The new HTTP path to use.

Definition at line 1053 of file OW_HTTPClient.cpp.
References m_httpPath.

void OW_NAMESPACE::HTTPClient::setReceiveTimeout ( int seconds ) [virtual]

Set the receive timeout on the socket.

Parameters:

seconds the number of seconds for the receive timeout

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1076 of file OW_HTTPClient.cpp.
References m_socket, and OW_NAMESPACE::Socket::setReceiveTimeout().

void OW_NAMESPACE::HTTPClient::setSendTimeout ( int seconds ) [virtual]

Set the send timeout on the socket.

Parameters:

seconds the number of seconds for the send timeout

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1090 of file OW_HTTPClient.cpp.
References m_socket, and OW_NAMESPACE::Socket::setSendTimeout().

void OW_NAMESPACE::HTTPClient::setTimeouts ( int seconds ) [virtual]

Set all timeouts (send, receive, connect).

Parameters:

seconds the number of seconds for the timeouts

Implements OW_NAMESPACE::CIMProtocolIFC.
Definition at line 1118 of file OW_HTTPClient.cpp.
References m_socket, and OW_NAMESPACE::Socket::setTimeouts().

void OW_NAMESPACE::HTTPClient::setUrl ( ) [private]

Definition at line 199 of file OW_HTTPClient.cpp.
References OW_NAMESPACE::String::empty(), m_url, and OW_NAMESPACE::URL::scheme.

Member Data Documentation

const int OW_NAMESPACE::HTTPClient::INFINITE_TIMEOUT = -1 [static]

Reimplemented from OW_NAMESPACE::CIMProtocolIFC.
Definition at line 180 of file OW_HTTPClient.hpp.

bool OW_NAMESPACE::HTTPClient::m_authRequired [private]

Definition at line 267 of file OW_HTTPClient.hpp.
Referenced by assumeBasicAuth(), and handleAuth().

bool OW_NAMESPACE::HTTPClient::m_doDeflateOut [private]

Definition at line 270 of file OW_HTTPClient.hpp.
Referenced by getFeatures().

String OW_NAMESPACE::HTTPClient::m_httpPath [private]

Definition at line 272 of file OW_HTTPClient.hpp.
Referenced by sendAuthorization(), sendHeaders(), and setHTTPPath().

UInt8 OW_NAMESPACE::HTTPClient::m_iDigestNonceCount [private]

Definition at line 239 of file OW_HTTPClient.hpp.
Referenced by sendAuthorization().

std::istream& OW_NAMESPACE::HTTPClient::m_istr [private]

Definition at line 268 of file OW_HTTPClient.hpp.
Referenced by checkConnection(), checkResponse(), convertToFiniteStream(), and getStatusLine().

String OW_NAMESPACE::HTTPClient::m_localCookieFile [private]

Definition at line 275 of file OW_HTTPClient.hpp.
Referenced by sendAuthorization().

String OW_NAMESPACE::HTTPClient::m_localNonce [private]

Definition at line 274 of file OW_HTTPClient.hpp.
Referenced by sendAuthorization().

std::ostream& OW_NAMESPACE::HTTPClient::m_ostr [private]

Definition at line 269 of file OW_HTTPClient.hpp.
Referenced by checkConnection(), getFeatures(), and sendHeaders().

CIMProtocolIStreamIFCRef OW_NAMESPACE::HTTPClient::m_pIstrReturn [private]

Definition at line 263 of file OW_HTTPClient.hpp.
Referenced by cleanUpIStreams().

Array<String> OW_NAMESPACE::HTTPClient::m_requestHeadersCommon [private]

Definition at line 259 of file OW_HTTPClient.hpp.
Referenced by prepareHeaders().

Array<String> OW_NAMESPACE::HTTPClient::m_requestHeadersNew [private]

Definition at line 262 of file OW_HTTPClient.hpp.
Referenced by getFeatures().

Array<String> OW_NAMESPACE::HTTPClient::m_requestHeadersPersistent [private]

Definition at line 255 of file OW_HTTPClient.hpp.
Referenced by sendHeaders().

String OW_NAMESPACE::HTTPClient::m_requestMethod [private]

Definition at line 266 of file OW_HTTPClient.hpp.
Referenced by getFeatures(), sendAuthorization(), and sendDataToServer().

HTTPHeaderMap OW_NAMESPACE::HTTPClient::m_responseHeaders [private]

Definition at line 252 of file OW_HTTPClient.hpp.
Referenced by checkResponse(), getFeatures(), getResponseHeader(), and prepareHeaders().

int OW_NAMESPACE::HTTPClient::m_retryCount [private]

Definition at line 271 of file OW_HTTPClient.hpp.

String OW_NAMESPACE::HTTPClient::m_sAuthorization [private]

Definition at line 233 of file OW_HTTPClient.hpp.
Referenced by assumeBasicAuth(), and sendAuthorization().

String OW_NAMESPACE::HTTPClient::m_sDigestCNonce [private]

Definition at line 238 of file OW_HTTPClient.hpp.
Referenced by sendAuthorization().

String OW_NAMESPACE::HTTPClient::m_sDigestNonce [private]

Definition at line 237 of file OW_HTTPClient.hpp.
Referenced by sendAuthorization().

String OW_NAMESPACE::HTTPClient::m_sDigestResponse [private]

Definition at line 241 of file OW_HTTPClient.hpp.
Referenced by sendAuthorization().

String OW_NAMESPACE::HTTPClient::m_sDigestSessionKey [private]

Definition at line 240 of file OW_HTTPClient.hpp.
Referenced by sendAuthorization().

SocketAddress OW_NAMESPACE::HTTPClient::m_serverAddress [private]

Definition at line 250 of file OW_HTTPClient.hpp.
Referenced by checkConnection(), getLocalAddress(), and getPeerAddress().

Socket OW_NAMESPACE::HTTPClient::m_socket [mutable, private]

Definition at line 265 of file OW_HTTPClient.hpp.
Referenced by checkAndExamineStatusLine(), checkConnection(), checkResponse(), close(), getConnectTimeout(), getLocalAddress(), getPeerAddress(), getReceiveTimeout(), getSendTimeout(), setConnectTimeout(), setReceiveTimeout(), setSendTimeout(), and setTimeouts().

String OW_NAMESPACE::HTTPClient::m_sRealm [private]

Definition at line 234 of file OW_HTTPClient.hpp.
Referenced by getCredentialsIfNecessary(), and sendAuthorization().

SSLClientCtxRef OW_NAMESPACE::HTTPClient::m_sslCtx [private]

Definition at line 264 of file OW_HTTPClient.hpp.

String OW_NAMESPACE::HTTPClient::m_statusLine [private]

Definition at line 276 of file OW_HTTPClient.hpp.
Referenced by checkAndExamineStatusLine(), checkResponse(), getFeatures(), getStatusLine(), and processHeaders().

URL OW_NAMESPACE::HTTPClient::m_url [private]

Definition at line 251 of file OW_HTTPClient.hpp.
Referenced by getCredentialsIfNecessary(), sendAuthorization(), and setUrl().

bool OW_NAMESPACE::HTTPClient::m_uselocalAuthentication [private]

Definition at line 273 of file OW_HTTPClient.hpp.
Referenced by assumeBasicAuth(), and handleAuth().

The documentation for this class was generated from the following files:

Generated on Thu Feb 9 09:15:00 2006 for openwbem by

1.4.6

OW_NAMESPACE::HTTPClient Class Reference

Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
