OW_NAMESPACE::HTTPSvrConnection Class Reference

#include <OW_HTTPSvrConnection.hpp>

Inheritance diagram for OW_NAMESPACE::HTTPSvrConnection:

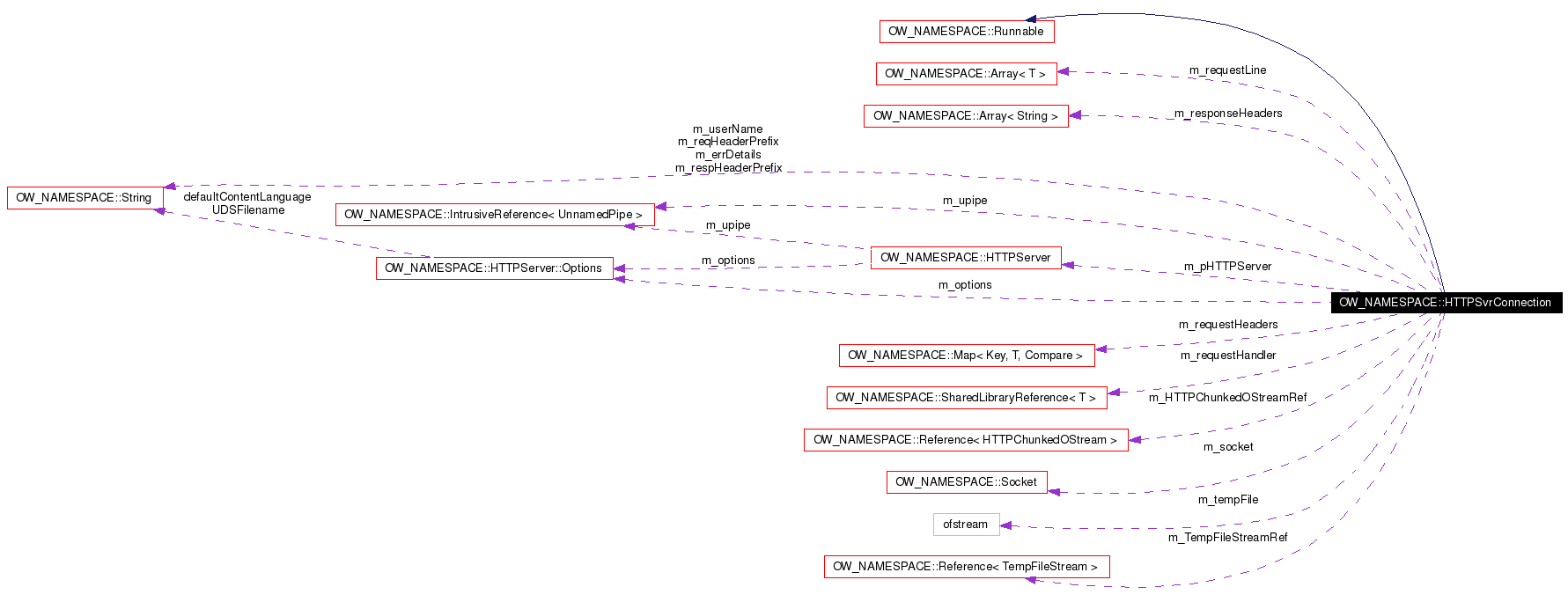

[legend]Collaboration diagram for OW_NAMESPACE::HTTPSvrConnection:

[legend]List of all members.

Public Member Functions
	HTTPSvrConnection (const Socket &socket, HTTPServer *htin, UnnamedPipeRef &upipe, const HTTPServer::Options &opts)
	Start a new http server connection.
	~HTTPSvrConnection ()
virtual void	run ()
	start processing the connection
bool	headerHasKey (const String &key) const
	Do the request headers contain a specific key?
String	getHeaderValue (const String &key) const
	Get the value associated with a key in the request headers.
void	addHeader (const String &key, const String &value)
	Add a header to the response headers.
StringArray	getRequestLine () const
	Get the request status line example: POST /cimom HTTP/1.1.
void	setErrorDetails (const String &details)
String	getHostName ()
	Get the hostname of the server.
Private Types
enum	requestMethod_t {   BAD = 0, POST, M_POST, TRACE,   OPTIONS }
enum	httpVerFlag_t { HTTP_VER_BAD = 0, HTTP_VER_10, HTTP_VER_11 }
Private Member Functions
int	processRequestLine ()
int	processHeaders (OperationContext &context)
void	trace ()
void	options (OperationContext &context)
void	post (std::istream &istr, OperationContext &context)
void	sendError (int resCode)
void	beginPostResponse ()
void	initRespStream (std::ostream *&ostrEntity)
void	sendPostResponse (std::ostream *ostrEntity, TempFileStream &ostrError, OperationContext &context)
int	performAuthentication (const String &info, OperationContext &context)
void	sendHeaders (int sc, int len=-1)
void	cleanUpIStreams (const CIMProtocolIStreamIFCRef &istrm)
CIMProtocolIStreamIFCRef	convertToFiniteStream (std::istream &istr)
String	getContentLanguage (OperationContext &context, bool &setByProvider, bool &clientSpecified)
void	doCooperativeCancel ()
	This function is available for subclasses to override if they wish to be notified when a cooperative cancel is being invoked on the thread.
Private Attributes
StringArray	m_requestLine
HTTPHeaderMap	m_requestHeaders
HTTPServer *	m_pHTTPServer
std::istream *	m_pIn
std::ofstream	m_tempFile
Socket	m_socket
std::ostream &	m_ostr
int	m_resCode
bool	m_needSendError
Array< String >	m_responseHeaders
httpVerFlag_t	m_httpVersion
requestMethod_t	m_method
std::istream &	m_istr
bool	m_isClose
Int64	m_contentLength
bool	m_chunkedIn
bool	m_deflateCompressionIn
bool	m_deflateCompressionOut
String	m_errDetails
String	m_reqHeaderPrefix
String	m_respHeaderPrefix
bool	m_isAuthenticated
IntrusiveReference< UnnamedPipe >	m_upipe
bool	m_chunkedOut
String	m_userName
bool	m_clientIsOpenWBEM2
RequestHandlerIFCRef	m_requestHandler
HTTPServer::Options	m_options
bool	m_shutdown
Reference< HTTPChunkedOStream >	m_HTTPChunkedOStreamRef
Reference< TempFileStream >	m_TempFileStreamRef

---

Detailed Description

Definition at line 58 of file OW_HTTPSvrConnection.hpp.

---

Member Enumeration Documentation

enum OW_NAMESPACE::HTTPSvrConnection::httpVerFlag_t [private]

Enumerator: HTTP_VER_BAD  HTTP_VER_10  HTTP_VER_11  Definition at line 157 of file OW_HTTPSvrConnection.hpp.

enum OW_NAMESPACE::HTTPSvrConnection::requestMethod_t [private]

Enumerator: BAD  POST  M_POST  TRACE  OPTIONS  Definition at line 149 of file OW_HTTPSvrConnection.hpp.

---

Constructor & Destructor Documentation

OW_NAMESPACE::HTTPSvrConnection::HTTPSvrConnection (  const Socket &  socket, HTTPServer *  htin, UnnamedPipeRef &  upipe, const HTTPServer::Options &  opts )

Start a new http server connection. This is called after HTTPServer accepts the connection. Parameters: socket  the socket (just accepted) htin  a pointer to the HTTPServer upipe  a pipe to receive a shutdown signal from opts  The configuration options struct (see HTTPServer.hpp)

OW_NAMESPACE::HTTPSvrConnection::~HTTPSvrConnection (   )

Definition at line 139 of file OW_HTTPSvrConnection.cpp. References OW_NAMESPACE::Socket::disconnect(), and m_socket.

---

Member Function Documentation

void OW_NAMESPACE::HTTPSvrConnection::addHeader (  const String &  key, const String &  value )  [inline]

Add a header to the response headers. Parameters: key  the key of the header (left of the ':') value  the value (right of the ':') Definition at line 115 of file OW_HTTPSvrConnection.hpp. References OW_NAMESPACE::HTTPUtils::addHeader(). Referenced by OW_NAMESPACE::DigestAuthentication::authenticate(), beginPostResponse(), options(), run(), sendHeaders(), and trace().

void OW_NAMESPACE::HTTPSvrConnection::beginPostResponse (   )  [private]

Definition at line 384 of file OW_HTTPSvrConnection.cpp. References addHeader(), OW_NAMESPACE::HTTPUtils::getCounterStr(), m_chunkedOut, m_clientIsOpenWBEM2, m_deflateCompressionOut, m_method, M_POST, m_requestHandler, m_resCode, m_respHeaderPrefix, and sendHeaders().

void OW_NAMESPACE::HTTPSvrConnection::cleanUpIStreams (  const CIMProtocolIStreamIFCRef &  istrm  )  [private]

Definition at line 376 of file OW_HTTPSvrConnection.cpp. References OW_NAMESPACE::HTTPUtils::eatEntity(). Referenced by run().

CIMProtocolIStreamIFCRef OW_NAMESPACE::HTTPSvrConnection::convertToFiniteStream (  std::istream &  istr  )  [private]

Referenced by run().

void OW_NAMESPACE::HTTPSvrConnection::doCooperativeCancel (   )  [private, virtual]

This function is available for subclasses to override if they wish to be notified when a cooperative cancel is being invoked on the thread. Note that this function will be invoked in a separate thread. For instance, a thread may use this function to write to a pipe or socket, if Thread::run() is blocked in select(), it can be unblocked and instructed to exit. It is also possible for an individual thread to override the cancellation request, if it knows that cancellation at this time may crash the system or cause a deadlock. To do this, the thread should throw an CancellationDeniedException. Note that threads are usually only cancelled in the event of a system shutdown or restart, so a thread should make a best effort to actually shutdown. Exceptions: CancellationDeniedException  Reimplemented from OW_NAMESPACE::Runnable. Definition at line 1292 of file OW_HTTPSvrConnection.cpp. References OW_NAMESPACE::Socket::disconnect(), m_shutdown, and m_socket.

String OW_NAMESPACE::HTTPSvrConnection::getContentLanguage (  OperationContext &  context, bool &  setByProvider, bool &  clientSpecified )  [private]

Definition at line 1256 of file OW_HTTPSvrConnection.cpp. References OW_NAMESPACE::IntrusiveReference< T >::cast_to(), context, OW_NAMESPACE::HTTPServer::Options::defaultContentLanguage, OW_NAMESPACE::OperationContext::getData(), m_options, and OW_NAMESPACE::OperationContext::SESSION_LANGUAGE_KEY.

String OW_NAMESPACE::HTTPSvrConnection::getHeaderValue (  const String &  key  )  const [inline]

Get the value associated with a key in the request headers. Parameters: key  the key to look up Returns: the value associated with the key in the request headers. Definition at line 106 of file OW_HTTPSvrConnection.hpp. References OW_NAMESPACE::HTTPUtils::getHeaderValue(). Referenced by processHeaders().

String OW_NAMESPACE::HTTPSvrConnection::getHostName (   )

Get the hostname of the server. Definition at line 1220 of file OW_HTTPSvrConnection.cpp. References OW_NAMESPACE::SocketAddress::getAnyLocalHost(), and OW_NAMESPACE::SocketAddress::getName(). Referenced by OW_NAMESPACE::DigestAuthentication::authenticate().

StringArray OW_NAMESPACE::HTTPSvrConnection::getRequestLine (   )  const [inline]

Get the request status line example: POST /cimom HTTP/1.1. Returns: a string array containing the tokenized request status line. Definition at line 124 of file OW_HTTPSvrConnection.hpp.

bool OW_NAMESPACE::HTTPSvrConnection::headerHasKey (  const String &  key  )  const [inline]

Do the request headers contain a specific key? Parameters: key  the key to look for Returns: true if the key is found in the request headers. Definition at line 97 of file OW_HTTPSvrConnection.hpp. References OW_NAMESPACE::HTTPUtils::headerHasKey(). Referenced by processHeaders().

void OW_NAMESPACE::HTTPSvrConnection::initRespStream (  std::ostream *&  ostrEntity  )  [private]

void OW_NAMESPACE::HTTPSvrConnection::options (  OperationContext &  context  )  [private]

Definition at line 1065 of file OW_HTTPSvrConnection.cpp. References addHeader(), OW_NAMESPACE::CIMFeatures::cimProduct, context, OW_NAMESPACE::HTTPServer::Options::enableDeflate, OW_NAMESPACE::HTTPServer::Options::env, OW_NAMESPACE::CIMFeatures::extURL, OW_NAMESPACE::HTTPUtils::getCounterStr(), i, OW_NAMESPACE::CIMFeatures::LISTENER, m_options, m_requestHandler, OW_ASSERT, OW_HTTP_THROW, OW_NAMESPACE::CIMFeatures::protocolVersion, OW_NAMESPACE::SC_NOT_IMPLEMENTED, OW_NAMESPACE::CIMFeatures::SERVER, OW_NAMESPACE::Array< T >::size(), OW_NAMESPACE::CIMFeatures::supportedGroups, and OW_NAMESPACE::CIMFeatures::supportsBatch. Referenced by run().

int OW_NAMESPACE::HTTPSvrConnection::performAuthentication (  const String &  info, OperationContext &  context )  [private]

Definition at line 1190 of file OW_HTTPSvrConnection.cpp. References OW_NAMESPACE::HTTPServer::authenticate(), context, m_pHTTPServer, m_socket, m_userName, and OW_NAMESPACE::SC_OK. Referenced by processHeaders().

void OW_NAMESPACE::HTTPSvrConnection::post (  std::istream &  istr, OperationContext &  context )  [private]

Referenced by run().

int OW_NAMESPACE::HTTPSvrConnection::processHeaders (  OperationContext &  context  )  [private]

Definition at line 681 of file OW_HTTPSvrConnection.cpp. References OW_NAMESPACE::HTTPServer::Options::allowAnonymous, context, OW_NAMESPACE::String::empty(), getHeaderValue(), headerHasKey(), HTTP_VER_11, m_chunkedIn, m_contentLength, m_errDetails, m_httpVersion, m_isAuthenticated, m_isClose, m_method, m_options, M_POST, m_userName, performAuthentication(), POST, OW_NAMESPACE::SC_BAD_REQUEST, OW_NAMESPACE::SC_INTERNAL_SERVER_ERROR, OW_NAMESPACE::SC_LENGTH_REQUIRED, OW_NAMESPACE::SC_UNAUTHORIZED, OW_NAMESPACE::OperationContext::setStringData(), OW_NAMESPACE::String::toInt64(), TRACE, and OW_NAMESPACE::OperationContext::USER_NAME. Referenced by run().

int OW_NAMESPACE::HTTPSvrConnection::processRequestLine (   )  [private]

Definition at line 614 of file OW_HTTPSvrConnection.cpp. References HTTP_VER_10, HTTP_VER_11, HTTP_VER_BAD, m_errDetails, m_httpVersion, m_requestLine, OW_NAMESPACE::SC_BAD_REQUEST, OW_NAMESPACE::SC_HTTP_VERSION_NOT_SUPPORTED, and OW_NAMESPACE::Array< T >::size(). Referenced by run().

void OW_NAMESPACE::HTTPSvrConnection::run (   )  [virtual]

start processing the connection Implements OW_NAMESPACE::Runnable. Definition at line 152 of file OW_HTTPSvrConnection.cpp. References addHeader(), cleanUpIStreams(), OW_NAMESPACE::Map< Key, T, Compare >::clear(), OW_NAMESPACE::Array< T >::clear(), OW_NAMESPACE::OperationContext::CLIENT_IPADDR, context, convertToFiniteStream(), OW_NAMESPACE::HTTPUtils::date(), OW_NAMESPACE::String::erase(), OW_NAMESPACE::Socket::getPeerAddress(), OW_NAMESPACE::Socket::getSelectObj(), OW_NAMESPACE::OperationContext::HTTP_PATH, m_chunkedIn, m_contentLength, m_errDetails, m_isAuthenticated, m_isClose, m_istr, m_method, m_needSendError, m_options, m_ostr, M_POST, m_reqHeaderPrefix, m_requestHeaders, m_requestLine, m_resCode, m_responseHeaders, m_shutdown, m_socket, m_upipe, options(), OPTIONS, OW_THROW, OW_NAMESPACE::HTTPUtils::parseHeader(), post(), POST, processHeaders(), processRequestLine(), OW_NAMESPACE::Array< T >::push_back(), OW_NAMESPACE::SC_BAD_REQUEST, OW_NAMESPACE::SC_INTERNAL_SERVER_ERROR, OW_NAMESPACE::SC_OK, OW_NAMESPACE::SC_REQUEST_TIMEOUT, OW_NAMESPACE::SC_SERVICE_UNAVAILABLE, OW_NAMESPACE::Select::select(), OW_NAMESPACE::Select::SELECT_ERROR, OW_NAMESPACE::Select::SELECT_INTERRUPTED, OW_NAMESPACE::Select::SELECT_TIMEOUT, sendError(), OW_NAMESPACE::OperationContext::setStringData(), OW_NAMESPACE::HTTPServer::Options::timeout, OW_NAMESPACE::SocketAddress::toString(), trace(), and TRACE.

void OW_NAMESPACE::HTTPSvrConnection::sendError (  int  resCode  )  [private]

Definition at line 1145 of file OW_HTTPSvrConnection.cpp. References m_errDetails, m_ostr, m_socket, OW_NAMESPACE::Socket::receiveTimeOutExpired(), and OW_NAMESPACE::SC_REQUEST_TIMEOUT. Referenced by run().

void OW_NAMESPACE::HTTPSvrConnection::sendHeaders (  int  sc, int  len = -1 )  [private]

Definition at line 1203 of file OW_HTTPSvrConnection.cpp. References addHeader(), i, m_ostr, m_responseHeaders, OW_NAMESPACE::Array< T >::size(), and OW_NAMESPACE::HTTPUtils::status2String(). Referenced by beginPostResponse(), and trace().

void OW_NAMESPACE::HTTPSvrConnection::sendPostResponse (  std::ostream *  ostrEntity, TempFileStream &  ostrError, OperationContext &  context )  [private]

void OW_NAMESPACE::HTTPSvrConnection::setErrorDetails (  const String &  details  )  [inline]

Definition at line 135 of file OW_HTTPSvrConnection.hpp. Referenced by OW_NAMESPACE::LocalAuthentication::authenticate(), and OW_NAMESPACE::DigestAuthentication::authenticate().

void OW_NAMESPACE::HTTPSvrConnection::trace (   )  [private]

Definition at line 1029 of file OW_HTTPSvrConnection.cpp. References addHeader(), i, m_ostr, m_requestLine, m_resCode, ostr, sendHeaders(), and OW_NAMESPACE::Array< T >::size(). Referenced by run().

---

Member Data Documentation

bool OW_NAMESPACE::HTTPSvrConnection::m_chunkedIn [private]

Definition at line 178 of file OW_HTTPSvrConnection.hpp. Referenced by processHeaders(), and run().

bool OW_NAMESPACE::HTTPSvrConnection::m_chunkedOut [private]

Definition at line 190 of file OW_HTTPSvrConnection.hpp. Referenced by beginPostResponse().

bool OW_NAMESPACE::HTTPSvrConnection::m_clientIsOpenWBEM2 [private]

Definition at line 192 of file OW_HTTPSvrConnection.hpp. Referenced by beginPostResponse().

Int64 OW_NAMESPACE::HTTPSvrConnection::m_contentLength [private]

Definition at line 177 of file OW_HTTPSvrConnection.hpp. Referenced by processHeaders(), and run().

bool OW_NAMESPACE::HTTPSvrConnection::m_deflateCompressionIn [private]

Definition at line 179 of file OW_HTTPSvrConnection.hpp.

bool OW_NAMESPACE::HTTPSvrConnection::m_deflateCompressionOut [private]

Definition at line 180 of file OW_HTTPSvrConnection.hpp. Referenced by beginPostResponse().

String OW_NAMESPACE::HTTPSvrConnection::m_errDetails [private]

Definition at line 181 of file OW_HTTPSvrConnection.hpp. Referenced by processHeaders(), processRequestLine(), run(), and sendError().

Reference<HTTPChunkedOStream> OW_NAMESPACE::HTTPSvrConnection::m_HTTPChunkedOStreamRef [private]

Definition at line 200 of file OW_HTTPSvrConnection.hpp.

httpVerFlag_t OW_NAMESPACE::HTTPSvrConnection::m_httpVersion [private]

Definition at line 173 of file OW_HTTPSvrConnection.hpp. Referenced by processHeaders(), and processRequestLine().

bool OW_NAMESPACE::HTTPSvrConnection::m_isAuthenticated [private]

Definition at line 184 of file OW_HTTPSvrConnection.hpp. Referenced by processHeaders(), and run().

bool OW_NAMESPACE::HTTPSvrConnection::m_isClose [private]

Definition at line 176 of file OW_HTTPSvrConnection.hpp. Referenced by processHeaders(), and run().

std::istream& OW_NAMESPACE::HTTPSvrConnection::m_istr [private]

Definition at line 175 of file OW_HTTPSvrConnection.hpp. Referenced by run().

requestMethod_t OW_NAMESPACE::HTTPSvrConnection::m_method [private]

Definition at line 174 of file OW_HTTPSvrConnection.hpp. Referenced by beginPostResponse(), processHeaders(), and run().

bool OW_NAMESPACE::HTTPSvrConnection::m_needSendError [private]

Definition at line 171 of file OW_HTTPSvrConnection.hpp. Referenced by run().

HTTPServer::Options OW_NAMESPACE::HTTPSvrConnection::m_options [private]

Definition at line 195 of file OW_HTTPSvrConnection.hpp. Referenced by getContentLanguage(), options(), processHeaders(), and run().

std::ostream& OW_NAMESPACE::HTTPSvrConnection::m_ostr [private]

Definition at line 169 of file OW_HTTPSvrConnection.hpp. Referenced by run(), sendError(), sendHeaders(), and trace().

HTTPServer* OW_NAMESPACE::HTTPSvrConnection::m_pHTTPServer [private]

Definition at line 165 of file OW_HTTPSvrConnection.hpp. Referenced by performAuthentication().

std::istream* OW_NAMESPACE::HTTPSvrConnection::m_pIn [private]

Definition at line 166 of file OW_HTTPSvrConnection.hpp.

String OW_NAMESPACE::HTTPSvrConnection::m_reqHeaderPrefix [private]

Definition at line 182 of file OW_HTTPSvrConnection.hpp. Referenced by run().

RequestHandlerIFCRef OW_NAMESPACE::HTTPSvrConnection::m_requestHandler [private]

Definition at line 194 of file OW_HTTPSvrConnection.hpp. Referenced by beginPostResponse(), and options().

HTTPHeaderMap OW_NAMESPACE::HTTPSvrConnection::m_requestHeaders [private]

Definition at line 164 of file OW_HTTPSvrConnection.hpp. Referenced by run().

StringArray OW_NAMESPACE::HTTPSvrConnection::m_requestLine [private]

Definition at line 163 of file OW_HTTPSvrConnection.hpp. Referenced by processRequestLine(), run(), and trace().

int OW_NAMESPACE::HTTPSvrConnection::m_resCode [private]

Definition at line 170 of file OW_HTTPSvrConnection.hpp. Referenced by beginPostResponse(), run(), and trace().

String OW_NAMESPACE::HTTPSvrConnection::m_respHeaderPrefix [private]

Definition at line 183 of file OW_HTTPSvrConnection.hpp. Referenced by beginPostResponse().

Array<String> OW_NAMESPACE::HTTPSvrConnection::m_responseHeaders [private]

Definition at line 172 of file OW_HTTPSvrConnection.hpp. Referenced by run(), and sendHeaders().

bool OW_NAMESPACE::HTTPSvrConnection::m_shutdown [private]

Definition at line 196 of file OW_HTTPSvrConnection.hpp. Referenced by doCooperativeCancel(), and run().

Socket OW_NAMESPACE::HTTPSvrConnection::m_socket [private]

Definition at line 168 of file OW_HTTPSvrConnection.hpp. Referenced by doCooperativeCancel(), performAuthentication(), run(), sendError(), and ~HTTPSvrConnection().

std::ofstream OW_NAMESPACE::HTTPSvrConnection::m_tempFile [private]

Definition at line 167 of file OW_HTTPSvrConnection.hpp.

Reference<TempFileStream> OW_NAMESPACE::HTTPSvrConnection::m_TempFileStreamRef [private]

Definition at line 205 of file OW_HTTPSvrConnection.hpp.

IntrusiveReference<UnnamedPipe> OW_NAMESPACE::HTTPSvrConnection::m_upipe [private]

Definition at line 188 of file OW_HTTPSvrConnection.hpp. Referenced by run().

String OW_NAMESPACE::HTTPSvrConnection::m_userName [private]

Definition at line 191 of file OW_HTTPSvrConnection.hpp. Referenced by performAuthentication(), and processHeaders().

---

The documentation for this class was generated from the following files:

• OW_HTTPSvrConnection.hpp
• OW_HTTPSvrConnection.cpp

---
