OWBI1::CIMClass Class Reference

The CIMClass encapsulates all information that pertains to a CIM class (i.e. More...

#include <OWBI1_CIMClass.hpp>

Inheritance diagram for OWBI1::CIMClass:

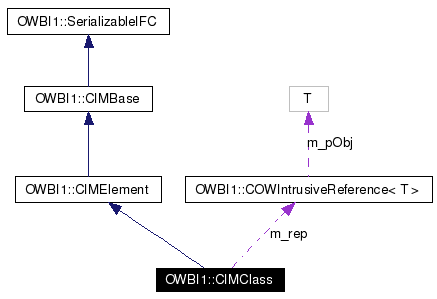

[legend]Collaboration diagram for OWBI1::CIMClass:

[legend]List of all members.

Public Types
typedef detail::CIMClassRepRef CIMClass::*	safe_bool
enum	{ SERIALIZATION_VERSION = 2 }
	Binary serialization version. More...
Public Member Functions
	CIMClass ()
	Create a new CIMClass object.
	CIMClass (CIMNULL_t)
	Create a new NULL CIMClass object.
	CIMClass (const CIMName &name)
	Create an CIMClass object with the given name.
	CIMClass (const char *name)
	Create an CIMClass object with the given name.
	CIMClass (const CIMClass &x)
	CIMClass (const detail::CIMClassRepRef &rep)
	~CIMClass ()
	Destroy this CIMClass object and decrement the refcount on the underlying data.
CIMClass &	operator= (const CIMClass &x)
virtual void	setNull ()
	Set this to a null object.
CIMName	getSuperClass () const
	In the future, this function will be changed to return a CIMName.
CIMName	getKeyClass () const
	In the future, this function will be changed to return a CIMName.
CIMClass &	setSuperClass (const CIMName &pname)
	Set the name of the parent CIM class for this CIMClass object.
bool	isKeyed () const
CIMClass &	setIsAssociation (bool isAssocFlag)
	Set the flag that indicates this CIMClass is an association.
CIMClass &	setIsKeyed (bool isKeyedParm=true)
	Set the flag that indicates this CIMClass has keys.
CIMPropertyArray	getKeys () const
CIMQualifier	getQualifier (const CIMName &name) const
	Get a named qualifier from this class.
CIMProperty	getProperty (const CIMName &name) const
	Get a named property from this class.
CIMProperty	getProperty (const CIMName &name, const CIMName &originClass) const
	Get a named property from this CIMClass.
CIMMethod	getMethod (const CIMName &name) const
	Get the method associated with the given name.
CIMMethod	getMethod (const CIMName &name, const CIMName &originClass) const
	Get the method associated with the given name from this CIMClass considering the given origin class in the process.
bool	isAssociation () const
CIMQualifierArray	getQualifiers () const
CIMPropertyArray	getAllProperties () const
CIMPropertyArray	getProperties () const
CIMMethodArray	getAllMethods () const
CIMMethodArray	getMethods () const
CIMClass &	addProperty (const CIMProperty &prop)
	Add a property to this class.
int	numberOfProperties () const
CIMClass &	setProperties (const CIMPropertyArray &props)
	Set the properties for this class.
CIMClass &	setProperty (const CIMProperty &prop)
	Update a property on this CIMClass if it exists.
CIMClass &	addQualifier (const CIMQualifier &qual)
	Add a qualifier to this class.
bool	hasQualifier (const CIMQualifier &qual) const
	Check for the existence of a qualifier in this class.
int	numberOfQualifiers () const
bool	removeQualifier (const CIMQualifier &qual)
	Remove a qualifier from this class.
bool	removeQualifier (const CIMName &name)
	Remove a qualifier from this class.
bool	removeProperty (const CIMName &name)
	Remove a property from this class.
CIMClass &	setQualifiers (const CIMQualifierArray &quals)
	Set the qualifiers for this class.
CIMClass &	setQualifier (const CIMQualifier &qual)
	Set the given qualifier on this CIMClass if it is present.
CIMClass &	addMethod (const CIMMethod &meth)
	Add a method to this class.
CIMClass &	setMethods (const CIMMethodArray &meths)
	Set the methods for this class.
CIMClass &	setMethod (const CIMMethod &meth)
	Update/add a method on this CIMClass object.
CIMInstance	newInstance () const
	Create a new instance of this CIM Class.
virtual CIMName	getName () const
	In the future, this function will be changed to return a CIMName.
virtual void	setName (const CIMName &name)
	Set the name associated with this CIMClass object.
virtual void	readObject (std::istream &istrm)
	Read this CIMClass object from an input stream.
virtual void	writeObject (std::ostream &ostrm) const
	Write this CIMClass object to an output stream.
virtual String	toMOF () const
virtual String	toString () const
	operator safe_bool () const
bool	operator! () const
detail::CIMClassRepRef	getRep () const
Private Attributes
detail::CIMClassRepRef	m_rep
Classes
struct	CLSData

---

Detailed Description

The CIMClass encapsulates all information that pertains to a CIM class (i.e.

properties, methods, qualifiers, etc...). CIMClass objects are ref counted/copy on write objects. It is not considered good practice to hold onto the pointer of an CIMClass object since the ref counting mechanism is driven by the construction and destruction process.

Definition at line 57 of file OWBI1_CIMClass.hpp.

---

Member Typedef Documentation

typedef detail::CIMClassRepRef CIMClass::* OWBI1::CIMClass::safe_bool

Definition at line 343 of file OWBI1_CIMClass.hpp.

---

Member Enumeration Documentation

anonymous enum

Binary serialization version. Version 1 had a language. Since a class doesn't actually have a language it was removed for version 2 Enumerator: SERIALIZATION_VERSION  Definition at line 65 of file OWBI1_CIMClass.hpp.

---

Constructor & Destructor Documentation

CIMClass::CIMClass (   )

Create a new CIMClass object. Definition at line 95 of file OWBI1_CIMClass.cpp.

CIMClass::CIMClass (  CIMNULL_t   )  [explicit]

Create a new NULL CIMClass object. Do not call any methods on it or your app may crash. Definition at line 100 of file OWBI1_CIMClass.cpp.

CIMClass::CIMClass (  const CIMName &  name  )  [explicit]

Create an CIMClass object with the given name. Parameters: name  The name for this CIMClass specified as an String. Definition at line 111 of file OWBI1_CIMClass.cpp. References name.

CIMClass::CIMClass (  const char *  name  )  [explicit]

Create an CIMClass object with the given name. Parameters: name  The name for this CIMClass specified as a NULL terminated string. Definition at line 105 of file OWBI1_CIMClass.cpp.

CIMClass::CIMClass (  const CIMClass &  x  )

Definition at line 712 of file OWBI1_CIMClass.cpp.

CIMClass::CIMClass (  const detail::CIMClassRepRef &  rep  )  [explicit]

Definition at line 118 of file OWBI1_CIMClass.cpp.

CIMClass::~CIMClass (   )

Destroy this CIMClass object and decrement the refcount on the underlying data. Definition at line 708 of file OWBI1_CIMClass.cpp.

---

Member Function Documentation

CIMClass & CIMClass::addMethod (  const CIMMethod &  meth  )

Add a method to this class. Parameters: meth  The CIMMethod to add to this class Returns: a reference to *this Definition at line 544 of file OWBI1_CIMClass.cpp.

CIMClass & CIMClass::addProperty (  const CIMProperty &  prop  )

Add a property to this class. Parameters: prop  The property to add to this class. Returns: a reference to *this Definition at line 342 of file OWBI1_CIMClass.cpp.

CIMClass & CIMClass::addQualifier (  const CIMQualifier &  qual  )

Add a qualifier to this class. Parameters: qual  The CIMQualifier to add to this class. Returns: a reference to *this Definition at line 401 of file OWBI1_CIMClass.cpp. References i.

CIMMethodArray CIMClass::getAllMethods (   )  const

Returns: All the methods for this class, including overides. Definition at line 320 of file OWBI1_CIMClass.cpp.

CIMPropertyArray CIMClass::getAllProperties (   )  const

Returns: All properties for this CIMClass, including overides. Definition at line 285 of file OWBI1_CIMClass.cpp. Referenced by OWBI1::CIMInstance::syncWithClass().

CIMName CIMClass::getKeyClass (   )  const

In the future, this function will be changed to return a CIMName. Returns: The name of the CIM class that declared the keys for this class. Definition at line 291 of file OWBI1_CIMClass.cpp. References i.

CIMPropertyArray CIMClass::getKeys (   )  const

Returns: The properties that are flagged as keys for this CIMClass as as array of CIMProperty objects. Definition at line 157 of file OWBI1_CIMClass.cpp. References OWBI1::Array< T >::append(), and i. Referenced by OWBI1::CIMObjectPath::syncWithClass().

CIMMethod CIMClass::getMethod (  const CIMName &  name, const CIMName &  originClass )  const

Get the method associated with the given name from this CIMClass considering the given origin class in the process. Parameters: name  The name of the method to retrieve originClass  The name of the CIM class where the method originated. Returns: The CIMMethod associated with the given name on success. Otherwise a NULL CIMMethod object. Definition at line 231 of file OWBI1_CIMClass.cpp. References i, and name.

CIMMethod CIMClass::getMethod (  const CIMName &  name  )  const

Get the method associated with the given name. Parameters: name  The name of the method to retrieve. If the name is in the form "originclass.methodname" the origin class of the method will be considered during the search. Otherwise the first method with the given name will be returned. Returns: The CIMMethod associated with the name, if found. Otherwise a NULL CIMMethod object. Definition at line 225 of file OWBI1_CIMClass.cpp. References name.

CIMMethodArray CIMClass::getMethods (   )  const

Returns: The methods for this class, excluding the overides. Definition at line 326 of file OWBI1_CIMClass.cpp. References OWBI1::Array< T >::append(), and i.

CIMName CIMClass::getName (   )  const [virtual]

In the future, this function will be changed to return a CIMName. Returns: The name associated with this CIMClass object as an String object. Implements OWBI1::CIMElement. Definition at line 731 of file OWBI1_CIMClass.cpp.

CIMPropertyArray CIMClass::getProperties (   )  const

Returns: The properties for this CIMClass, excluding the overides. Definition at line 305 of file OWBI1_CIMClass.cpp. References OWBI1::Array< T >::append(), and i.

CIMProperty CIMClass::getProperty (  const CIMName &  name, const CIMName &  originClass )  const

Get a named property from this CIMClass. Parameters: name  The name of the property to to retreive. originClass  The name of the origin class the property comes from. Returns: The CIMProperty associated with the given name and origin, if found. Otherwise a NULL CIMProperty object. Definition at line 192 of file OWBI1_CIMClass.cpp. References i, and name.

CIMProperty CIMClass::getProperty (  const CIMName &  name  )  const

Get a named property from this class. Parameters: name  The name of the property to retrieve. If the name is in the form "originclass.propertyname" the origin class of the property will be considered during the search. Otherwise the first property found with the given name will be returned. Returns: CIMProperty associated with the name if found. Otherwise a NULL CIMProperty object. Definition at line 186 of file OWBI1_CIMClass.cpp. Referenced by OWBI1::CIMInstance::createModifiedInstance(), OWBI1::CIMObjectPath::syncWithClass(), and OWBI1::CIMInstance::syncWithClass().

CIMQualifier CIMClass::getQualifier (  const CIMName &  name  )  const

Get a named qualifier from this class. Parameters: name  The name of the qualifer to retreive Returns: The CIMQualifier associated with the given name if found. Otherwise a NULL CIMQualifier. Definition at line 172 of file OWBI1_CIMClass.cpp. References i, and name.

CIMQualifierArray CIMClass::getQualifiers (   )  const

Returns: The qualifiers associated with the CIMClass object. Definition at line 279 of file OWBI1_CIMClass.cpp.

CIMClassRepRef CIMClass::getRep (   )  const

Definition at line 781 of file OWBI1_CIMClass.cpp.

CIMName CIMClass::getSuperClass (   )  const

In the future, this function will be changed to return a CIMName. Returns: The name of the parent CIM class of this CIMClass object. Definition at line 131 of file OWBI1_CIMClass.cpp.

bool CIMClass::hasQualifier (  const CIMQualifier &  qual  )  const

Check for the existence of a qualifier in this class. Parameters: qual  The CIMQualifier to check the existence of. Returns: true if this class has the qualifer. Otherwise false. Definition at line 437 of file OWBI1_CIMClass.cpp. References i.

bool CIMClass::isAssociation (   )  const

Returns: true if this CIMClass is an association. Definition at line 266 of file OWBI1_CIMClass.cpp.

bool CIMClass::isKeyed (   )  const

Returns: true if this CIMClass object has key properties. Definition at line 144 of file OWBI1_CIMClass.cpp.

CIMInstance CIMClass::newInstance (   )  const

Create a new instance of this CIM Class. Properties on the instance will be set to the default values specified in this class. Returns: A new CIMInstance of this class appropriately initialized. Definition at line 561 of file OWBI1_CIMClass.cpp. References OWBI1::CIMInstance::setClassName(), and OWBI1::CIMInstance::syncWithClass().

int CIMClass::numberOfProperties (   )  const

Returns: The number of properties for this class. Definition at line 356 of file OWBI1_CIMClass.cpp.

int CIMClass::numberOfQualifiers (   )  const

Returns: The number of the qualifiers for this class. Definition at line 453 of file OWBI1_CIMClass.cpp.

OWBI1::CIMClass::operator safe_bool (   )  const

Returns: true if this CIMClass in not a NULL object.

bool OWBI1::CIMClass::operator! (   )  const

CIMClass & CIMClass::operator= (  const CIMClass &  x  )

Definition at line 718 of file OWBI1_CIMClass.cpp.

virtual void OWBI1::CIMClass::readObject (  std::istream &  istrm  )  [virtual]

Read this CIMClass object from an input stream. Parameters: istrm  The input stream to read this CIMClass from. Implements OWBI1::SerializableIFC.

bool CIMClass::removeProperty (  const CIMName &  name  )

Remove a property from this class. Parameters: name  The name of the property to remove from this class. Returns: true if the property was removed. Otherwise false. Definition at line 496 of file OWBI1_CIMClass.cpp. References i, and name.

bool CIMClass::removeQualifier (  const CIMName &  name  )

Remove a qualifier from this class. Parameters: name  The name of the qualifier to remove from this class. Returns: true if the qualifier was removed. Otherwise false. Definition at line 479 of file OWBI1_CIMClass.cpp. References i, and name.

bool CIMClass::removeQualifier (  const CIMQualifier &  qual  )

Remove a qualifier from this class. Parameters: qual  The qualifier to remove from this class. Returns: true if the qualifier was removed. Otherwise false. Definition at line 459 of file OWBI1_CIMClass.cpp. References i.

CIMClass & CIMClass::setIsAssociation (  bool  isAssocFlag  )

Set the flag that indicates this CIMClass is an association. Parameters: isKeyedParm  If true this class will be flagged as an association. Returns: a reference to *this Definition at line 272 of file OWBI1_CIMClass.cpp.

CIMClass & CIMClass::setIsKeyed (  bool  isKeyedParm = true  )

Set the flag that indicates this CIMClass has keys. Parameters: isKeyedParm  If true this class is flagged as having keys. Returns: a reference to *this Definition at line 150 of file OWBI1_CIMClass.cpp.

CIMClass & CIMClass::setMethod (  const CIMMethod &  meth  )

Update/add a method on this CIMClass object. Parameters: meth  The method to add/update on this class. Returns: a reference to *this Definition at line 385 of file OWBI1_CIMClass.cpp. References OWBI1::CIMMethod::getName(), and i.

CIMClass & CIMClass::setMethods (  const CIMMethodArray &  meths  )

Set the methods for this class. The old methods will be removed. Parameters: meths  An CIMMethodArray containing the new methods for this class. Returns: a reference to *this Definition at line 554 of file OWBI1_CIMClass.cpp.

void CIMClass::setName (  const CIMName &  name  )  [virtual]

Set the name associated with this CIMClass object. Parameters: name  The new name for this CIMClass object. Implements OWBI1::CIMElement. Definition at line 125 of file OWBI1_CIMClass.cpp. References name.

void CIMClass::setNull (   )  [virtual]

Set this to a null object. All subsequent oprations on this object will fail. Implements OWBI1::CIMBase. Definition at line 725 of file OWBI1_CIMClass.cpp.

CIMClass & CIMClass::setProperties (  const CIMPropertyArray &  props  )

Set the properties for this class. All of the old properties are removed. Parameters: props  An CIMPropertyArray containing the new properties for this CIMClass object. Returns: a reference to *this Definition at line 362 of file OWBI1_CIMClass.cpp.

CIMClass & CIMClass::setProperty (  const CIMProperty &  prop  )

Update a property on this CIMClass if it exists. If it doesn't exist, this add it. Parameters: prop  The property to update/add on this class. Returns: a reference to *this Definition at line 369 of file OWBI1_CIMClass.cpp. References OWBI1::CIMProperty::getName(), and i.

CIMClass & CIMClass::setQualifier (  const CIMQualifier &  qual  )

Set the given qualifier on this CIMClass if it is present. If it is not, then add it. Parameters: qual  The qualifier to set or add to this CIMClass. Returns: a reference to *this Definition at line 520 of file OWBI1_CIMClass.cpp. References i.

CIMClass & CIMClass::setQualifiers (  const CIMQualifierArray &  quals  )

Set the qualifiers for this class. The old qualifiers will be removed. Parameters: quals  An CIMQualifierArray that contains the new qualifiers. Returns: a reference to *this Definition at line 513 of file OWBI1_CIMClass.cpp.

CIMClass & CIMClass::setSuperClass (  const CIMName &  pname  )

Set the name of the parent CIM class for this CIMClass object. Parameters: pname  The name of the parent CIM class for this object. Returns: a reference to *this Definition at line 137 of file OWBI1_CIMClass.cpp.

String CIMClass::toMOF (   )  const [virtual]

Returns: The MOF representation of this CIMClass object as an String object. Implements OWBI1::CIMBase. Definition at line 628 of file OWBI1_CIMClass.cpp. References OWBI1::Array< T >::begin(), OWBI1::Array< T >::end(), OWBI1::Array< T >::erase(), i, and OWBI1::Array< T >::insert().

String CIMClass::toString (   )  const [virtual]

Returns: The string representation of this CIMClass. This yields the same results as toMOF. Implements OWBI1::CIMElement. Definition at line 703 of file OWBI1_CIMClass.cpp.

virtual void OWBI1::CIMClass::writeObject (  std::ostream &  ostrm  )  const [virtual]

Write this CIMClass object to an output stream. Parameters: ostrm  The output stream to write this CIMClass to. Implements OWBI1::SerializableIFC.

---

Member Data Documentation

detail::CIMClassRepRef OWBI1::CIMClass::m_rep [private]

Definition at line 360 of file OWBI1_CIMClass.hpp.

---

The documentation for this class was generated from the following files:

• OWBI1_CIMClass.hpp
• OWBI1_CIMClass.cpp

---
